Specifications
Highlight:
High Pressure Rubber Hose Crimping Machine
,E180 Rubber Hose Crimping Machine
,E180 High Pressure Hose Crimping Machine
Crimping Range:
14 - 167mm
Hose Size:
1/4 - 4inch
Die Sets:
18
Color:
Grey And Blue
Max. Opening:
45mm
Crimping Force:
980T
Product Name:
E180 Rubber Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
7.5KW
Size:
800*650*880mm
Weight:
510Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E180
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

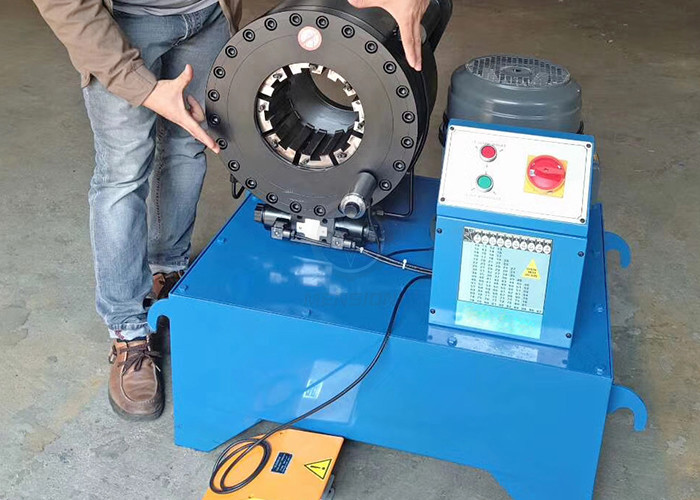

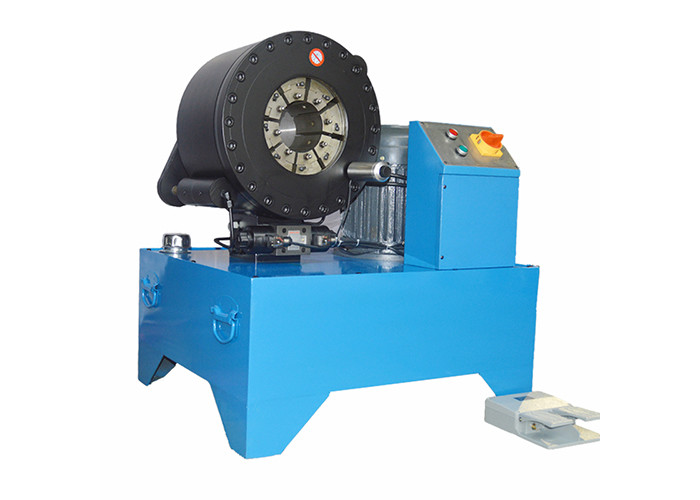

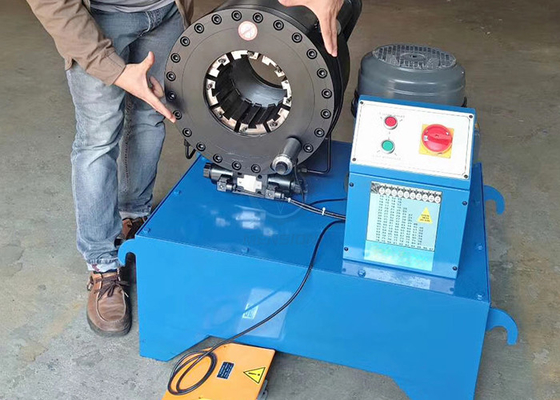

MS-E180 Rubber Hose Crimping Machine
Product Overview
The MS-E180 rubber hose crimping machine features a wide crimping range from 1/4 inch to 4 inch. Renowned for its substantial crimping force and large opening stroke, this industrial crimper delivers reliable performance for hydraulic hose assembly applications.
Main Features
- Unique cylinder construction for extended service life
- High-precision diameter control system
- Large-flow hydraulic pump for maximum power
- Dual-function foot pedal for enhanced operational convenience
Technical Specifications
| Model | MS-E180 Rubber Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 167 mm |
| Crimping Force | 980 Tons |
| Hose Size | 1/4 - 4 inch |
| Max. Opening | 45 mm |
| Die Sets | 18 |
| Die Set Type | 32 + 180 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | 380 V |
| Motor Power | 7.5 KW |
| Length | 800 mm |
| Width | 650 mm |
| Height | 880 mm |
| Weight | 510 KG |
E180 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 15 mm | 55 |
| 15 | 15 - 18 mm | 55 |
| 18 | 18 - 21 mm | 55 |
| 21 | 21 - 24 mm | 55 |
| 24 | 24 - 27 mm | 70 |
| 27 | 27 - 33 mm | 70 |
| 33 | 33 - 39 mm | 70 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 75 |
| 51 | 51 - 57 mm | 90 |
| 57 | 57 - 66 mm | 90 |
| 66 | 66 - 73 mm | 100 |
| 73 | 73 - 90 mm | 110 |
| 90 | 90 - 96 mm | 120 |
| 96 | 96 - 102 mm | 120 |
| 102 | 102 - 108 mm | 120 |
| 108 | 108 - 114 mm | 120 |
| 114 | 114 - 123 mm | 120 |
| 123 | 123 - 136 mm | 120 |
Additional Notes
- * indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options: 110V, 208V, 240V, 415V
