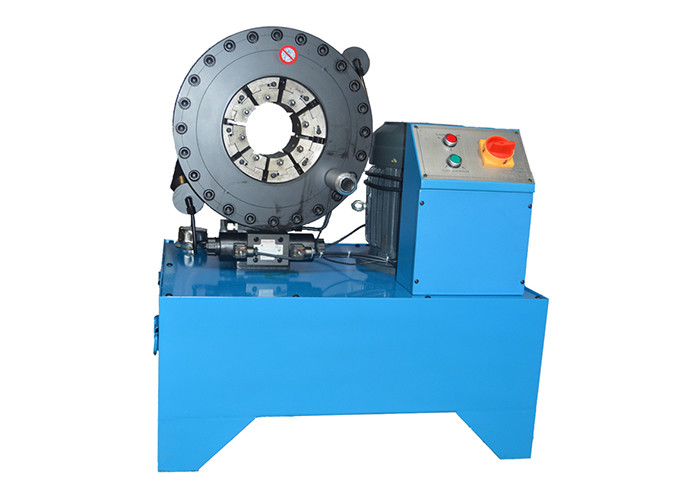

Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 167mm | Hose Size | 1/4 - 4inch |
|---|---|---|---|
| Die Sets | 18 | Color | Grey And Blue |
| Max. Opening | 45mm | Crimping Force | 980T |
| Product Name | E180 Brake Hose Crimping Machine | Application | Production |
| System Pressure | 31.5Mpa | Power | 7.5KW |
| Size | 800*650*880mm | Weight | 510Kg |
| Highlight | E180 Brake Hose Crimping Machine,980T Brake Hose Crimping Machine,Middle Range Hydraulic Hose Machine |
||
Product Description
BRAKE HOSE CRIMPING MACHINE MS-E180
DESCRIPTION
MS-E180 brake hose crimper machine is famous for its big crimping force. It is the ideal choice when crimping is for big size and pressure pipes and tubes. With a FINN POWER quality dial, the accuracy can arrive 0.01mm.
MAIN FEATURES
1. Unique valve connect system, high stability;
2. One piece hydraulic head, prevent oil leakage problem;
3. Solenoid valve with high hardness spool, long service time;
4. Heat treatment of the die base.
TECHNICAL DATA
|
Model |
MS-E180 Brake Hose Crimping Machine |
|
Crimping Range |
14 - 167 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
45 (mm) |
|
Die Sets |
18 |
|
Die Set Type |
32 180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) |
|
Motor Power |
7.5 (KW) |
|
Length |
800 (mm) |
|
Width |
650 (mm) |
|
Height |
880 (mm) |
|
Weight |
510 (KG) |
E180 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 33mm |
55 |
|
33 |
33 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 66mm |
100 |
|
66 |
66 - 73mm |
110 |
| 73 | 73 - 90mm | 110 |
| 90 | 90 - 96mm | 120 |
| 96 | 96 - 102mm | 120 |
| 102 | 102 - 108mm | 120 |
| 108 | 108 - 114mm | 120 |
| 114 | 114 - 123mm | 120 |
| 123 | 123 - 136mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
