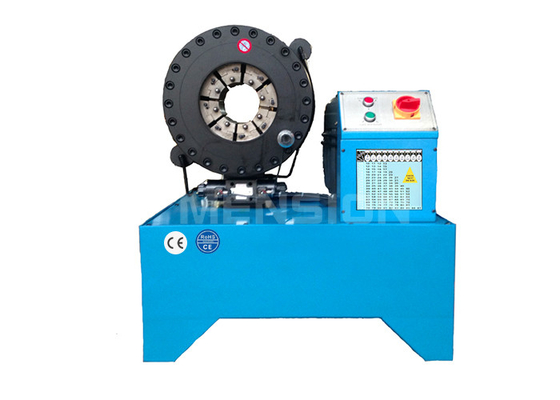

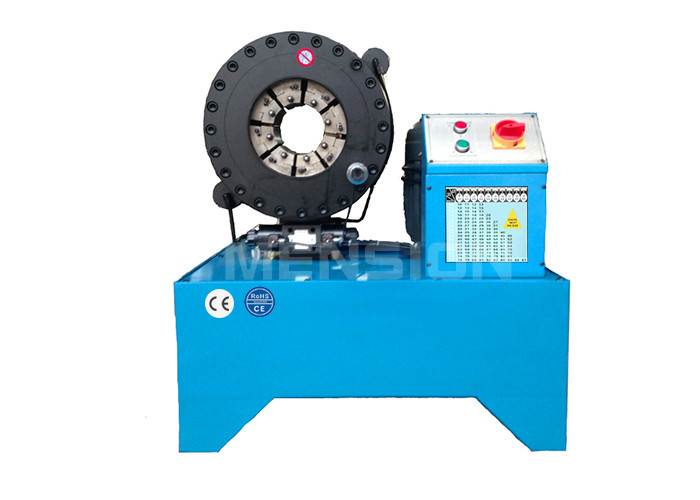

HOSE PRESSING MACHINE MS-E180
DESCRIPTION
MS-E180 hose pressing machinery is suitable for industrial and hydraulic pressure oil hose up to 102mm (4 inch) inner diameter crimping. Max opening without die sets can be up to 167mm, so it is enable crimping big size industrial hoses or other tubes and pipes.
MAIN FEATURES
1. Large drive system, big capacity
2. High accuracy with stable performance
3. Advanced cylinder making technology
4. Aluminium shell copper wire high efficient motor
TECHNICAL DATA
|
Model |
MS-E180 Pressing Machinery |
|
Crimping Range |
14 - 167 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
45 (mm) |
|
Die Sets |
18 |
|
Die Set Type |
32 180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) |
|
Motor Power |
7.5 (KW) |
|
Length |
800 (mm) |
|
Width |
650 (mm) |
|
Height |
880 (mm) |
|
Weight |
510 (KG) |
E180 4 INCH CRIMPER DIE SETS
|
Die No. # |
Crimping (mm) |
Length(mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 15.0 |
55 |
|
15 |
15.0 - 18.0 |
55 |
|
18 |
18.0 - 21.0 |
55 |
|
21 |
21.0 - 24.0 |
55 |
|
24 |
24.0 - 27.0 |
55 |
|
27 |
27.0 - 33.0 |
55 |
|
33 |
33.0 - 39.0 |
75 |
|
39 |
39.0 - 45.0 |
75 |
|
45 |
45.0 - 51.0 |
90 |
|
51 |
51.0 - 57.0 |
90 |
|
57 |
57.0 - 66.0 |
100 |
|
66 |
66.0 - 73.0 |
110 |
| 73 | 73.0 - 90.0 | 110 |
| 90 | 90.0 - 96.0 | 120 |
| 96 | 96.0 - 102.0 | 120 |
| 102 | 102.0 - 108.0 | 120 |
| 108 | 108.0 - 114.0 | 120 |
| 114 | 114.0 - 123.0 | 120 |
| 123 | 123.0 - 136.0 | 120 |
NOTE
• " * " for non standard mold
• Customized die set with special length, shape and diameter is available
• Special voltage 110V, 208V, 240V, 415V, 440V are availbale
• Quick change for mold is customized

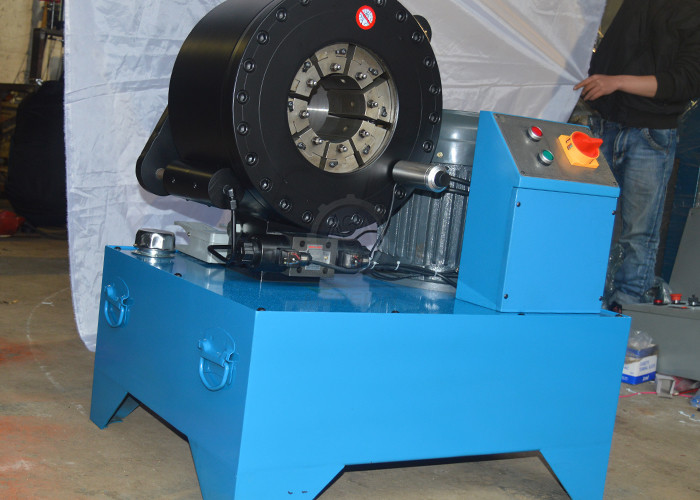

DETAILED PICTURES
► Cr12MOV master die and die sets, high hardness long service life
► Casting forging hydraulic oil cylinder, easy for daily maintenance low human cost
► Clear oil level ruler, make it more convinient for user
