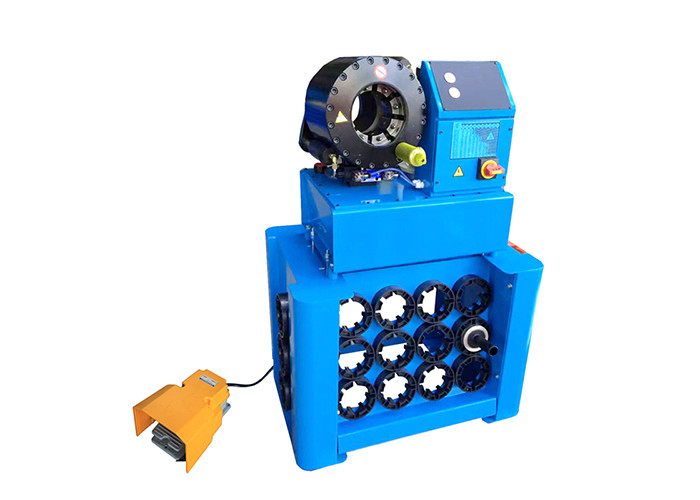

High Efficiency Manual Hose Crimping Machine
,Manual Hose Crimping Machine
,E130 Hose Crimping Machine
BRAND MANUAL HOSE CRIMPING MACHINE
MS-E130-I
DESCRIPTION
MS-E130-I manual hose pressing machine is a button control model. It is the best choice for hydraulic hose of large production. This hose crimping machine is famous for its wide crimping range and high accuracy.
ADVANTAGES
1. Quick change for die sets, improve the efficiency;
2. Crimping with fast speed, high productivity;
3. Finn power type diameter control dial, high accuracy;
4. Foot pedal, more convenient.
TECHNICAL DATA
|
Model |
MS-E130-I Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 HOSE CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

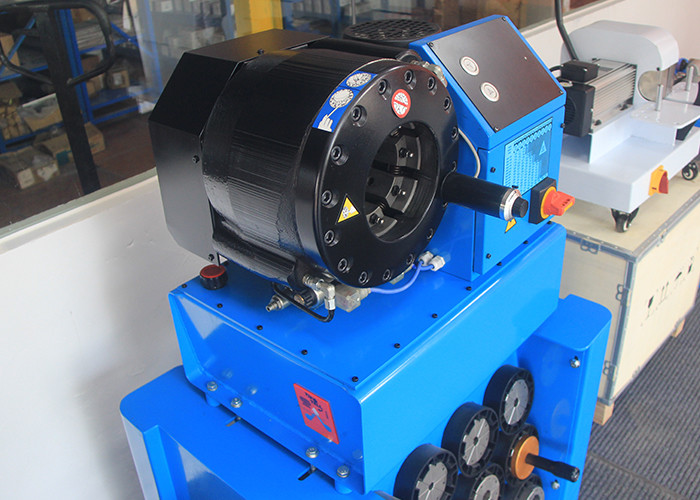

► NEW DESIGN CRIMPING HEAD
New inner structure design, enable high accuracy even for using after years
► CR12MOV DIE SETS
13 die sets hardness 59-63HRC, with quick change tool, productivity improve much.
► HIGH QUALITY MOTOR
Copper wire with aluminium sheel, good heat releasing, longer service life.
► FAMOUS PLC CONTROL
Stable microcomputer control with high accuracy and multifucntion
► OEM SERVICE AVAILABLE
MS-E130-I can be customized on different color, buttons and die sets
► APPLICATION SHOW
E130-I is a high configured hose crimping machine, it has the ability of crimping high pressure
stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive
system, air suspension or springs.
-
