Specifications
Highlight:
High Pressure Hose Machine E130-I
,Hydraulic High Pressure Hose Machine
,E130-I high pressure hydraulic hose crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
P32 High Pressure Hose Crimper
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130-I
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
High Pressure Hydraulic Hose Crimping Tool Finn Power P32 Manual Hose Crimper

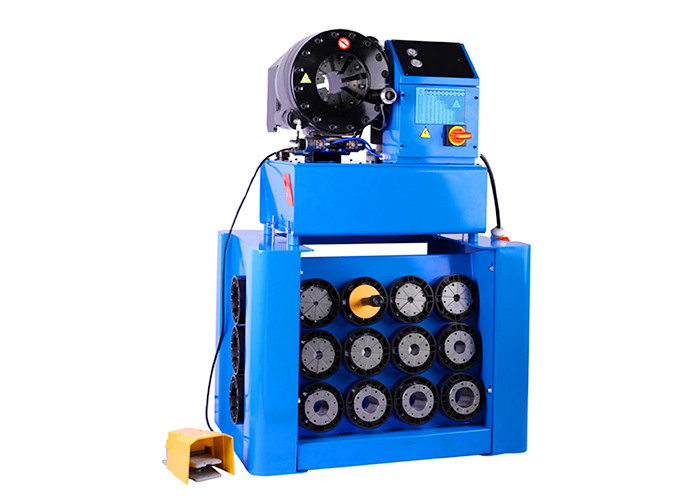

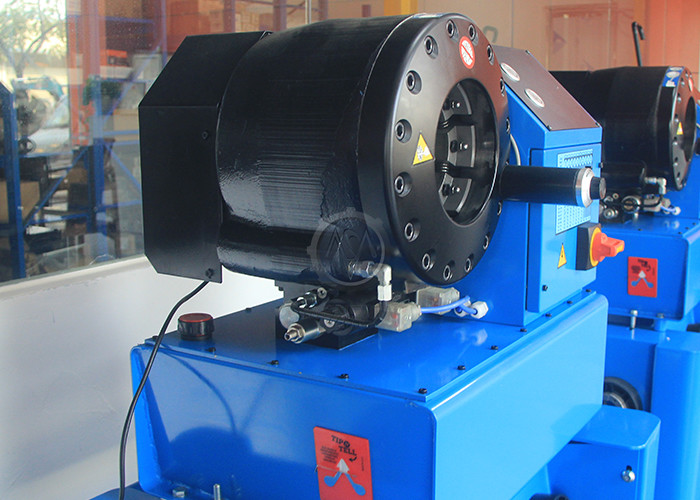

HIGH PRESSURE HOSE CRIMPER MS-P32
DESCRIPTION
The MS-P32 high pressure hose crimper features large opening capacity, powerful crimping force, and rapid operation. It is ideally suited for hydraulic high pressure hose assembly, industrial pipe fabrication, steel tube connections, and electrical power transmission applications.
ADVANTAGES
- Die set rack for easy and safe die installation
- Double bevel master die for high accuracy and maximum force
- Foot pedal control for safety and improved productivity
- User-friendly button controls for quick and easy operation
TECHNICAL DATA
| Model | MS-P32 High Pressure Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 CRIMPING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30-34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
NOTE
• * indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
