Specifications
Highlight:
Brake Flexible Hose Crimping Machine
,Reliable Flexible Hose Crimping Machine
,SP32 Hose Crimping Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
SP32 Brake Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-SP32
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Brake Line Crimping Tool Hydraulic Hose Press Machine Finn Power P32 Manual

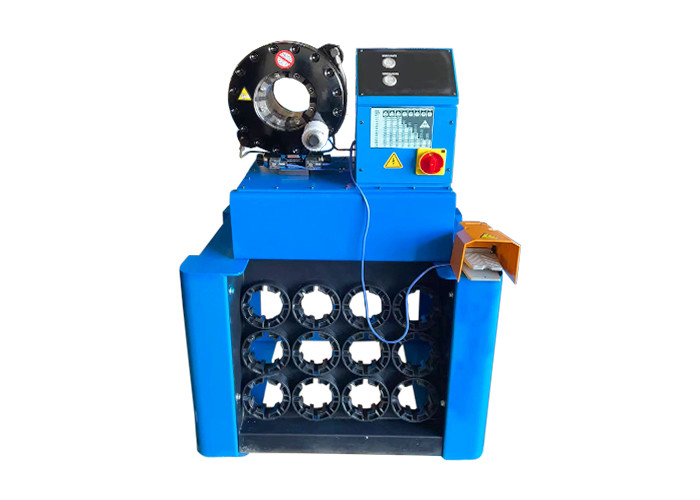

BRAKE HOSE CRIMPING MACHINE SP32
DESCRIPTION
MS-SP32 hydraulic crimping machine is widely used in industries including hydraulic hoses, electrical material transmission, ship and boat manufacturing, railroad systems, industrial pipes, cables, and wire ropes.
ADVANTAGES
- Ergonomic design height for comfortable operation
- Thickened machine body and rack for enhanced safety
- High-hardness die sets for extended service life
- Standard foot pedal to improve productivity
TECHNICAL DATA
| Model | MS-SP32 Brake Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
SP32 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
NOTE
• * indicates non-standard die sets
• Customized die sets are available upon request
• Special voltage options available: 110V, 208V, 240V, 415V
