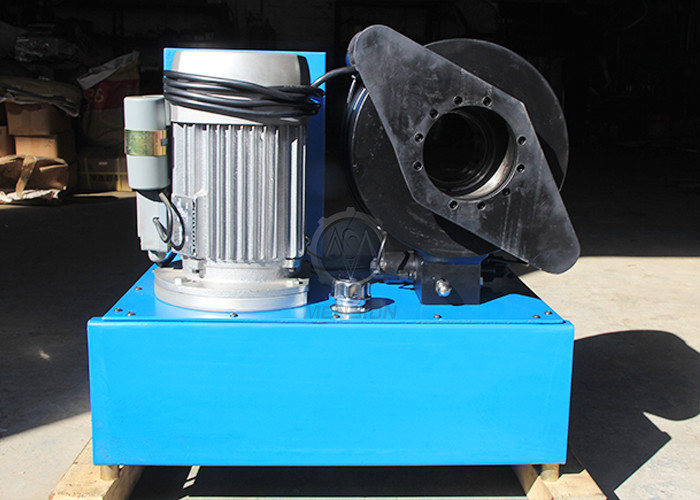

Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine

  • Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine
  • Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E38
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Crimping Force 640T
Max. Opening 31mm Color Blue
Power 4KW Size 630*450*600mm
Weight 200Kg Hydraulic Oil T46
Product Name E38 Manual Hose Crimping Machine
Highlight

640T Manual Hose Crimping Machine

,

4KW Manual Hose Crimping Machine

,

4KW manual hydraulic hose crimper
Leave a Message
Product Description



MANUAL HOSE CRIMPING MACHINE

MS-E38

DESCRIPTION



MS-E38 manual hose crimping machine is suitable for high pressure hose crimping. With special die sets, it can do brake hose lines crimping and other tube or pipes connecting work.



MAIN FEATURES



1. Quick speed, high productivity;

2. Intergrated button, easy and convenient;

3. Die sets with high hardness;

4. Cylinder making with advanced technology.



TECHNICAL DATA



Model

MS-E38 Manual Hose Crimper

Crimping Range

14 - 87(mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 4SH

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

38

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)
Hydraulic Oil 50 (L)



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 0



38 CRIMPER MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 60

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 110



NOTE



1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) " * " for non standard die sets



► CRIMPING UNIT WITH DOUBLE BEVEL, LARGE FORCE AND HIGH ACCURACY



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 1



► SIMPLE OPERATE PANEL, CONVENIENT AND EASIER FOR NOVICE



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 2



► SOLENOID VALVE WITH FAMOUS BRAND, LOW MAINTENANCE COST



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 3



► CRIMPING REFERENCE SHEET TO TEACH USER THE CRIMPING DIAMETER OF EACH HOSE



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 4



► HYDRAULIC HOSE ASSEMBLY CRIMPING SAMPLES



Manual Tube Crimping Machine Hydraulic Hose Crimper Hydraulic Pressure Pipe Machine 5
