Wide Range High Pressure Hose Crimper
,E38 High Pressure Hose Crimper
,Wide Range high pressure crimping tool

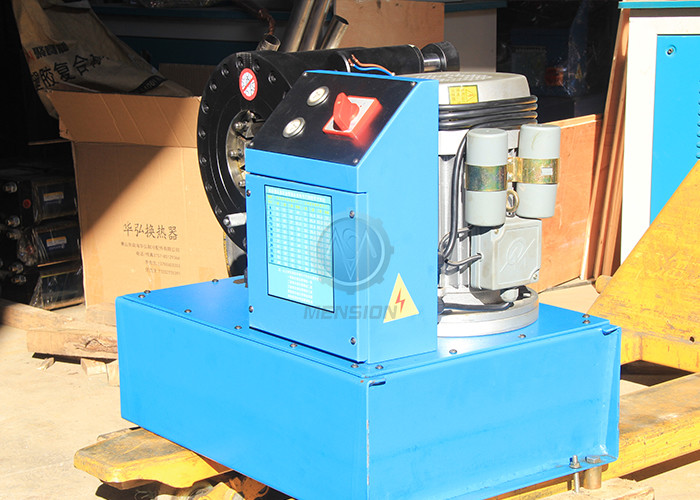

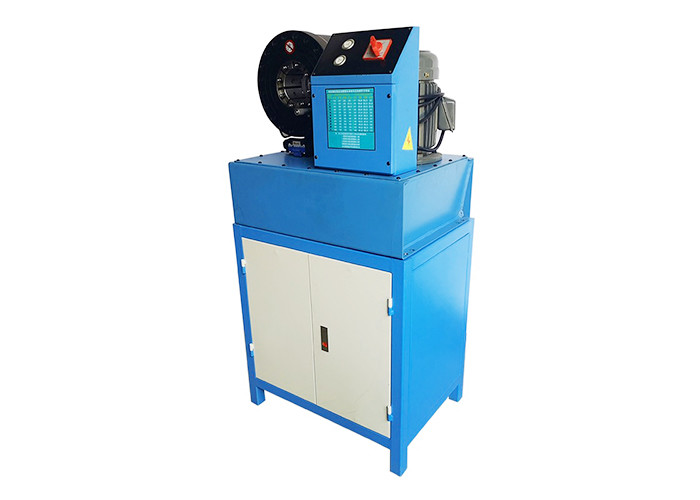

HIGH PRESSURE HOSE CRIMPER MS-E38
DESCRIPTION
MS-E38 high pressure hose crimper is with human desging height, convenient to operate. With big crimping force, it can press hose up to 2 inch of high pressure and 3 inch of industrial pipes.
MAIN FEATURES
1. Advanced cylinder making technology, long life;
2. High quality mold steel, high hardness;
3. Simple panel, easy and convenient;
4. Thicken rack offering a safe plat form.
TECHNICAL DATA
|
Model |
MS-E38 High Pressure Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
| Hydraulic Oil | 50 (L) |
38 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
3) * for non standard die sets.
