Rubber Hose Skiving Machine
,Braided Hose Skiving Machine
,51CS pipe cutting tool

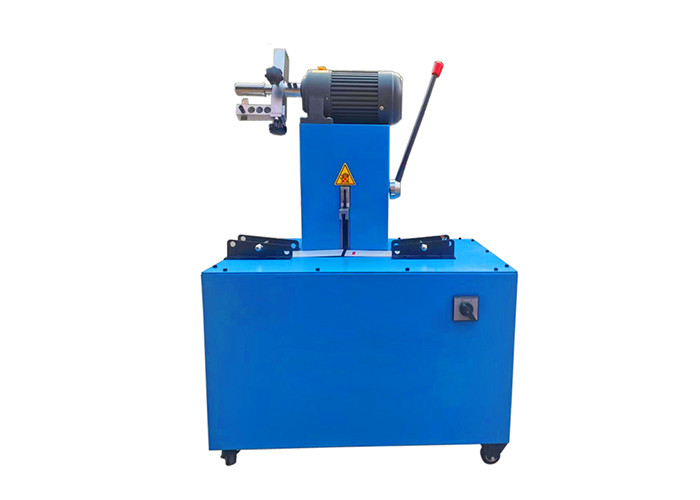

RUBBER LAYER HOSE SKIVING MACHINE MS-51CS
DESCRIPTION
MS-51CS is a machine which has both hose length cutting and hose rubber skiving function.
ADVANTAGES
1. Wheel on the legs, make the machine easy to move;
2. Rubber skiving length can be adjusted based on the ruler;
3. Up and down cutting design, more safe;
4. Cutting blade with high quality steel, long serving life.
TECHNICAL DATA
|
Model |
MS-51CS Hose Skiving Machine |
|
Hose Size |
1/8'' - 2'' |
|
Cutting Speed |
2700 (rpm) |
|
Cutting Blade |
350*32 (mm) |
|
Cutting Blade No. |
1 (pcs) |
|
Skiving Speed |
500 (r/min) |
|
Skiving Mandrel |
10 (pcs) |
|
Length |
680 (mm) |
|
Width |
650 (mm) |
|
Height |
1050 (mm) |
|
Weight |
90 (kg) |

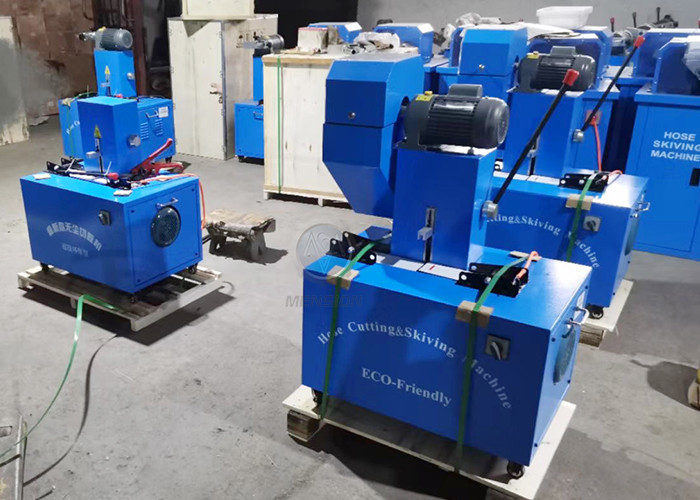

► PICTURE DETAILS
• Warning to alert the user be safe when using the machine
• Copper wire aluminium shell electric motor, light weight, long using time
► APPLICATION
51CS hose cutting and skiving machine can be used for cutting high pressure stainless steel braided rubber hose, low pressure industrial water or air hose and other flexible pipe and cables.
-
AReliable quality, easy to use, a great helper for starting a business.
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
-
WP32 is very practical for our market. It handles 1/4" to 2" hoses easily. My workers learned quickly, and efficiency improved a lot. Thank you!
Please Use Our Online Inquiry Contact Form Below If You Have Any Questions, Our Team Will Get Back To You As Soon As Possible
