20m 40m Hydraulic Rubber Hose Stainless Steel Braided EN856 4SP

HYDRAULIC RUBBER HOSE EN856 4SP

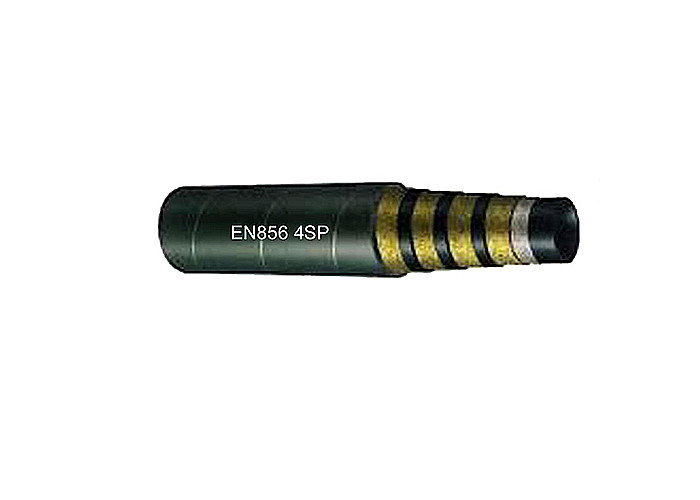

PRODUCT STRUCTURE

Steel wire braided hose structure is composed of liquid-resistant synthetic rubber inner rubber layer, medium rubber layer, one or two or four steel wire braided reinforcement layer, and synthetic rubber outer rubber layer with excellent weather resistance.

APPLICATION

Steel wire reinforced hydraulic rubber hose is mainly used for mine hydraulic support and oil field exploitation. Like engineering construction, lifting transportation, metallurgical forging, mining equipment, marine, etc. The system transports petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) liquid, water-based liquid (such as emulsion, oil-water emulsion, water), gas, etc. and liquid transmission with certain pressure and temperature.

FEATURES
1. The hose is made of special synthetic rubber and has excellent oil resistance, heat resistance and aging resistance.
2. The hose has high pressure and excellent pulse performance.
3. The tube body is tightly combined, soft to use, and small in deformation under pressure.
4. The hose has excellent resistance to bending and fatigue.
5. The length of the steel wire braided hose is large, the length of φ32 is 20 meters, and the diameter below φ25 can reach 10 meters or even more than 100 meters.


INNER TUBE: oil resistant synthetic rubber

REINFORCEMENT:  four spirals of high tensil steel wire

COVER: abrasion and weather resistant synthetic rubber

TEMPERATURE RANGE: -40℃ to 100℃

CERTIFICATE OF CE
