Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool

  • Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool
  • Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool
  • Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51CG
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 51CG Manual Hose Crimping Machine Crimping Range 14 - 87mm
Hose Size 1/4 - 2inch Die Sets 10
Color Blue Max. Opening 30mm
Crimping Force 500T System Pressure 31.5Mpa
Power 3KW Size 670*430*820mm
Weight 260Kg HS Code 8477800000
Highlight

11 Die Sets hydraulic pipe machine

,

51CG hydraulic pipe machine

,

51CG manual hydraulic crimping machine
Leave a Message
Product Description

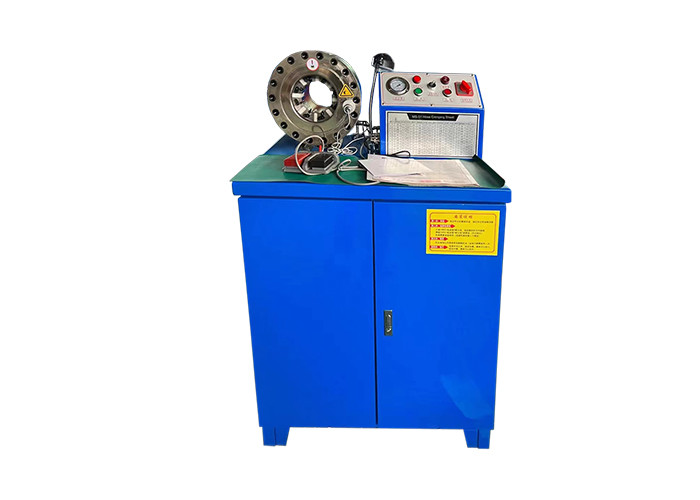

MANUAL HOSE CRIMPING MACHINE

MS-51CG

DESCRIPTION



MS-5CG manual hose crimping machine is suitable for hydraulic hose up to 2 inch crimping. With a comfortable height, it has become one of the most famous type hose crimper.



MAIN FEATURES



1. Forged one piece hydraulic clylinder, high hardness, long service life;

2. Multiple operate mode, more convenient and flexible;

3. Extreme high pressure, big crimping ability;

4. Foot pedal switch, improve the efficiency;

5. Working light to make crimping work more clear.



TECHNICAL DATA



Model

MS-51CG Manual Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4-2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

820 (mm)

Weight

260 (KG)



Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool 0



51 CRIMPER MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

- * is for non standard die sets



OPTIONAL



- Quick Change Tool

- Quick Change Die Set Rack;



Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool 1



Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool 2



Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool 3



Manual Hydraulic Hose Crimper Pipe Crimping Machine Fuel Line Ferrule Crimping Tool 4
