High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper

  • High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper
  • High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51M
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 31mm Crimping Force 350T
System Pressure 31.5Mpa Power Hand Pump
Size 730*550*680mm Weight 170Kg
Product Name 51M Manual Hose Crimping Machine
Highlight

2 Inch Manual Hose Crimping Machine

,

Manual Hose Crimping Machine Crimper

,

51M High Pressure Hose Crimper
Leave a Message
Product Description

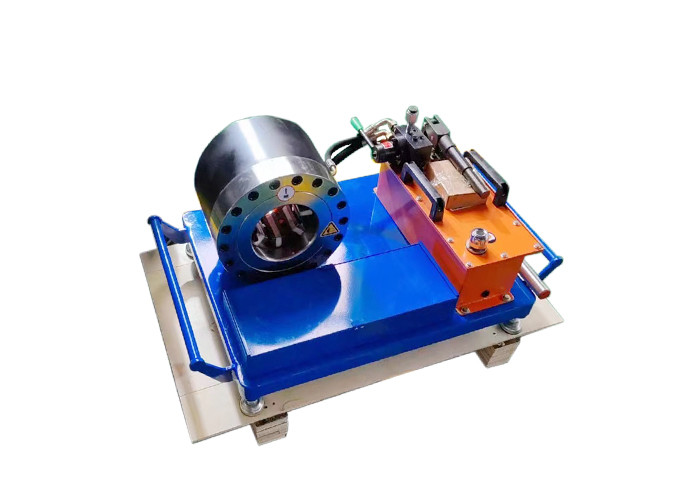

2 INCH MANUAL HIGH PRESSURE HOSE CRIMPER MS-51M

DESCRIPTION



MS-51M manual hose crimping machine is specially designed and manufactured for site crimping, when there is no power supply. With big hydraulic manual pump, it can crimp up to 2 inch 4SH 4SP hydraulic high pressure hose.



ADVANTAGES



1. Compact structure, easy to move;

2. High precision dial, more convenient;

3. Hard polishing mold, high hardness;

4. Safe die sets box.



TECHNICAL DATA



Model

MS-51M Manual Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

350 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

Manual Pump

Motor Power

Manual Pump

Length

730 (mm)

Width

550 (mm)

Height

680 (mm)

Weight

170 (KG)



High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper 0



NOTE



- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL



- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;



51 CRIMPING MACHINE STANDARD DIE SETS



Die No.

Crimping Range

6*

6 - 8mm

8*

8 - 10mm

10*

10 - 12mm

12*

12 - 14mm

14

14 - 16mm

16

16 - 19mm

19

19 - 23mm

23

23 - 27mm

27

27 - 31mm

31

31 - 35mm

35

35 - 41mm





High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper 1



High Pressure Hydraulic Hose Crimper Air Conditioning Hose Crimping Tool Water Line Crimper 2
