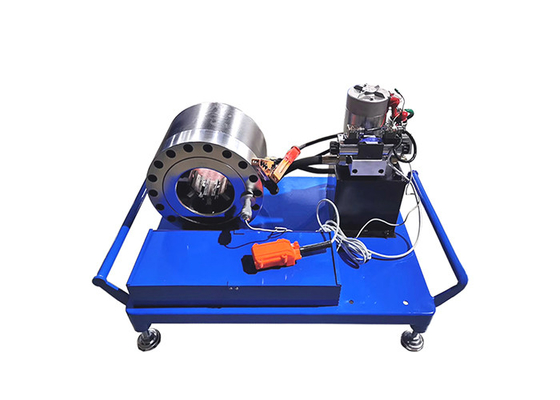

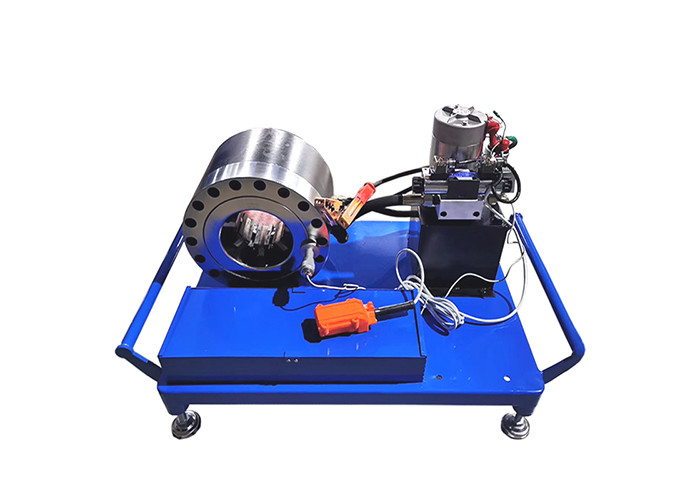

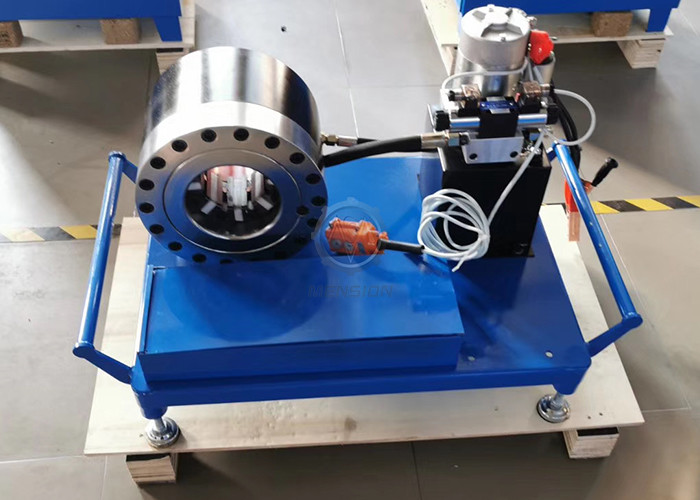

DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper

  • DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
  • DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
  • DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51DC
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 300T
Product Name 12V DX68 Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 2.2KW
Size 650*600*600mm Weight 170Kg
Highlight

High Hardness Hose Crimping Machine

,

51DC Hose Crimping Machine

,

Car Battery Power Hose Crimper
Leave a Message
Product Description



12V HOSE CRIMPER MACHINE 51DC

DESCRIPTION



MS-51DC is a unique dx68 hose crimping machine which use car battery as drive power. With ten die sets, it can crimp hose from 1/4 to 2 inch. And for industrial hose up to 3 inch.


MAIN FEATURES


► Forged hydraulic oil clylinder, high hardness;
► Easy hand hold operate panel, more convenient;
► Precise crimping diameter control ruler;
► Advanced back mechenical positioning device;

TECHNICAL DATA



Model

MS-51DC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

300 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

600 (mm)

Height

600 (mm)

Weight

170 (KG)


DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 35

8*

8.0 - 10.0

 35

10*

10.0 - 12.0

 35

12*

12.0 - 15.0

 35

15

15.0 - 19.0

 60

19

19.0 - 23.0

 60

23

23.0 - 26.0

 60

26

26.0 - 31.0

 60

31

31.0 - 36.0

 70

36

36.0 - 41.0

 70

41

41.0 - 47.0

 70

47

47.0 - 55.0

 80

55

55.0 - 63.0

 80

63

63.0 - 69.0

 80

69*

69.0 - 76.0

 90


 NOTE


• " * " for non standard die sets
• Customized die sets are available
• AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale

► HYDRAULIC HOSE ASSEMBLY CRIMPING SAMPLES



DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper 1
