220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale

  • 220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale
  • 220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale
  • 220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51CG
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51CG Rubber Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
Highlight

3KW Flexible Hose Crimping Machine

,

30mm Flexible Hose Crimping Machine

,

Safe Hose Crimping Machine
Leave a Message
Product Description



RUBBER FLEXIBLE HOSE CRIMPING MACHINE MS-51CG

DESCRIPTION



MS-51CG rubber hose crimping machine is applying principle of dual -hydraulic circuit, that is, the piston's advancement and retreat and the tensor of the mold and the shrinkage movement of the mold are the power generated by the hydraulic power source. Not only does it move smoothly, the return journey is fast, but it will not occur like a spring return, which makes the mold cannot be opened and locks. In addition, the tightness system design of the oil cylinder is connected before and after, and it is easy to put on various different types of elbows.



MAIN ADVANTAGES



1. Forged one piece oil tank, high hardness;

2. Multifunctional operate panel, more flexible;

3. Pressure gauge, anti shock, show system pressure clearly;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

6. Side die set install design, more safe.



TECHNICAL DATA



Model

MS-51CG Rubber Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)

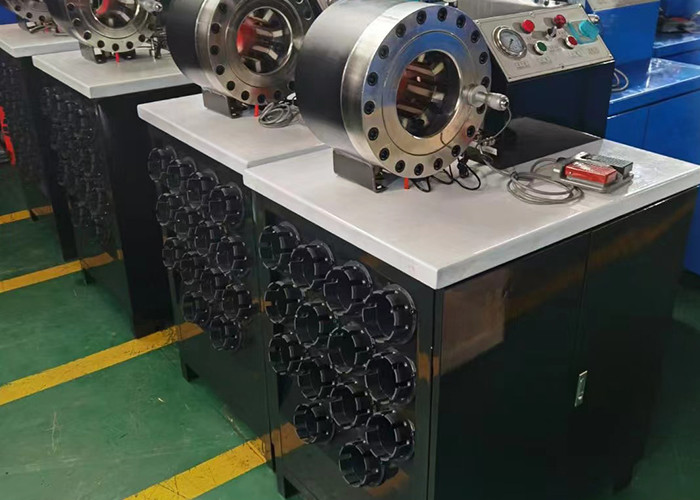

220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale 0



51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;

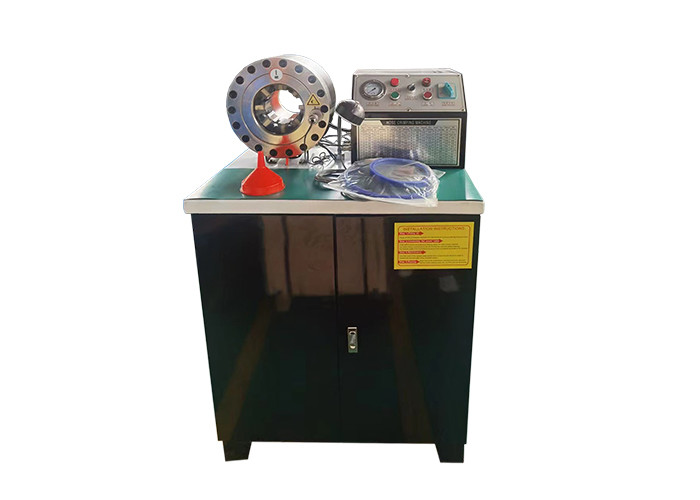

220V Rubber Hydraulic Flexible Hose Crimping Machine Hydraulic Cable Crimpers For Sale 1
