Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing

  • Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing
  • Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing
  • Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51M
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 31mm Crimping Force 350T
Product Name 51M Hose Crimping Machine (DX68) Application Workshop
System Pressure 31.5Mpa Power Hand Pump
Size 730*550*680mm Weight 170Kg
Highlight

Manual DX68 Hose Crimping Machine

,

51M DX68 Hose Crimping Machine

,

DX68 51M Hose Crimping Machine
Leave a Message
Product Description

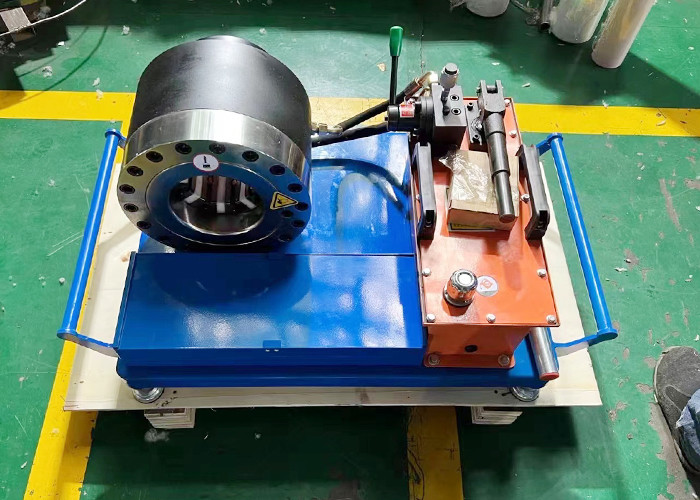

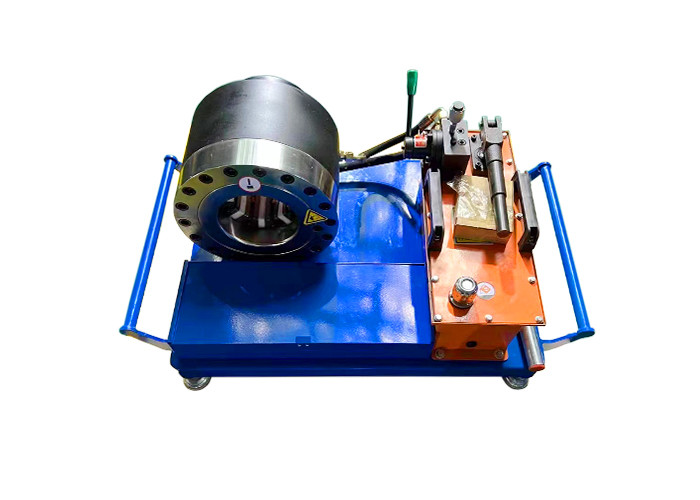

(DX68) HOSE CRIMPING MACHINE MS-51M MANUAL

DESCRIPTION



MS-51M is a portable manual hydraulic high pressure hose crimping machine. It is with standard ten die sets, suitable for hose single piece production.



ADVANTAGES



1. Compact structure, light weight;

2. Easy pressure releasing;

3. Quick speed;

4. Low maintenance cost.



TECHNICAL DATA



Model

51M Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

350 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

Manual Pump

Motor Power

Manual Pump

Length

730 (mm)

Width

550 (mm)

Height

680 (mm)

Weight

170 (KG)



Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing 0

51 PRESSING MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 14 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

13 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70
47 47 - 55mm 80
55 55 - 63mm 80
63 63 - 74mm 80



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL



• Quick Change Tool

• Quick Change Die Set Rack;

• UC control;



Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing 1
