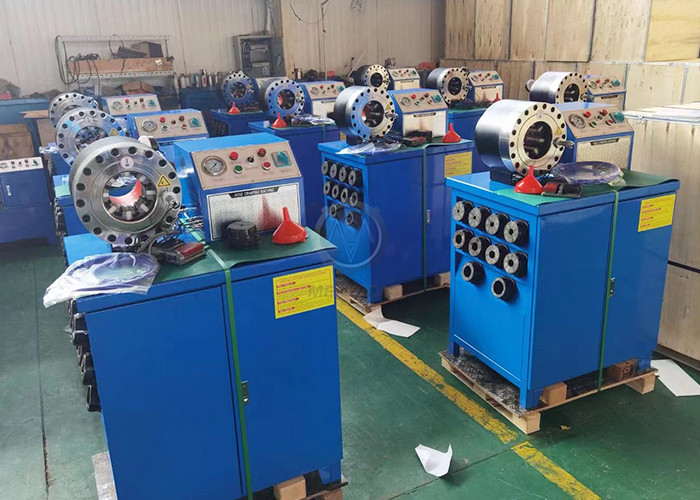

DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine

  • DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine
  • DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine
  • DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51CG
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51CG Hose Crimping Machine (DX68) Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
Highlight

DX68 pipe crimping machine

,

51CG pipe crimping machine

,

51CG Hydraulic Pipe Crimper
Leave a Message
Product Description



HOSE CRIMPING MACHINE 51CG

DESCRIPTION



MS-51CG is a special DX68 hose crimping machine which with the crimping capacity of 2 inch hose pressing. It is with a multi fucntional operate penal, which has pressure guage, signal altering light, press button, opening button, power switch, mode change switch.



MAIN ADVANTAGES



► One piece hydraulic oil cylinder, easy maintenance;

► Micrometer with high precision;

► Low working noise;

► Piston pump with big force.



TECHNICAL DATA



Model

MS-51CG Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)



DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine 0



51 CRIMPER DIE SETS



Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 35

8*

8.0 - 10.0

 35

10*

10.0 - 12.0

 35

12*

12.0 - 15.0

 35

15

15.0 - 19.0

 60

19

19.0 - 23.0

 60

23

23.0 - 26.0

 60

26

26.0 - 31.0

 60

31

31.0 - 36.0

 70

36

36.0 - 41.0

 70

41

41.0 - 47.0

 70

47

47.0 - 55.0

 80

55

55.0 - 63.0

 80

63

63.0 - 69.0

 80

69*

69.0 - 76.0

 90



NOTE



• " * " for non standard mold

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONAL



• Quick Change Tool

• UC control



DETAILED PICTURES FOR 51CG HOSE CRIMPER



► User freindly design, working light to enable the user see the crimping clearly to prevent from harming; vernier dial use magnetic connect, easy to install and take off



DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine 1



► Side box for placing the die sets, it is easy to change or intall



DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine 2



► Two operate mode: automatic and semi-automatic (manual), users can choose their favored mode according to need; signal indicator to alert the user when reaching to the settled diameter



DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine 3



► HYDRAULIC HOSE ASSEMBLY MAKING BY THE MACHINE



DX Hydraulic SC32 Crimper Pipe Crimping Machine Hydraulic Hose Press Machine 4
