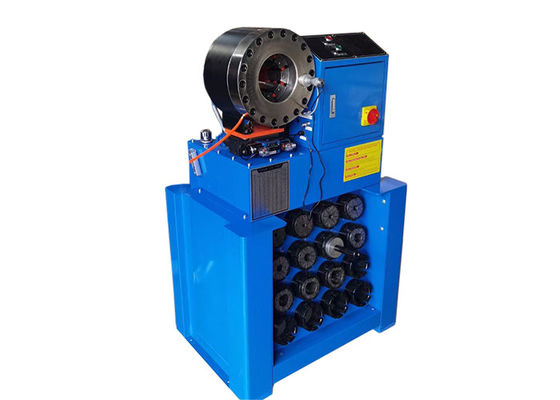

High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine

  • High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine
  • High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine
  • High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51KH
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51KH Hose Crimping Machine (DX68) Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*1520mm Weight 310Kg
Highlight

DX68 High Pressure Hose Crimping Machine

,

51KH High Pressure Hose Crimping Machine

,

High Speed Hose Crimper
Leave a Message
Product Description



HIGH PRESSURE DX HOSE CRIMPING MACHINE MS-51KH

DESCRIPTION



MS-51KH is high pressure hydraulic hose press crimping machine updated model. It is with quick die change and die set rack, make the crimping work more flexible. The quick die change tool enable the die sets changed or installed at one time, instead of one by one.



MAIN FEATURES



1) Simple structure, easy installation and maintation.
2) Advanced world famous brand components in hydraulic sapre parts, electric parts and operation parts.
3) Button way plus foot pedal to control the die opening and closing.
4) Running in a high speed, no pollution.



TECHNICAL DATA



Model

MS-51KH Hose Crimping Machine (DX68)

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)



High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine 0





51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
