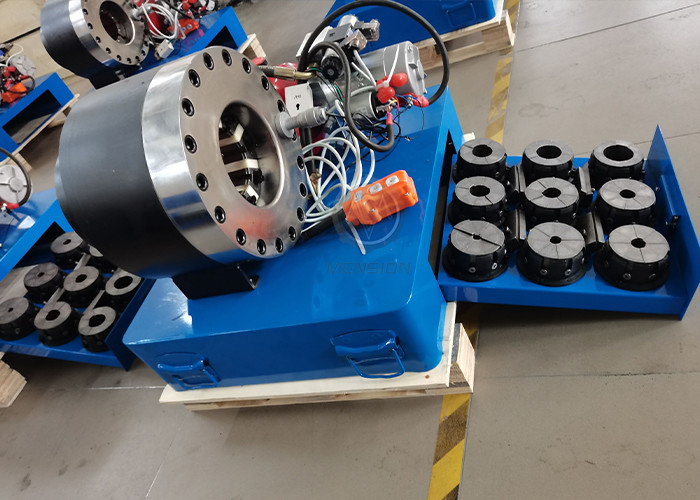

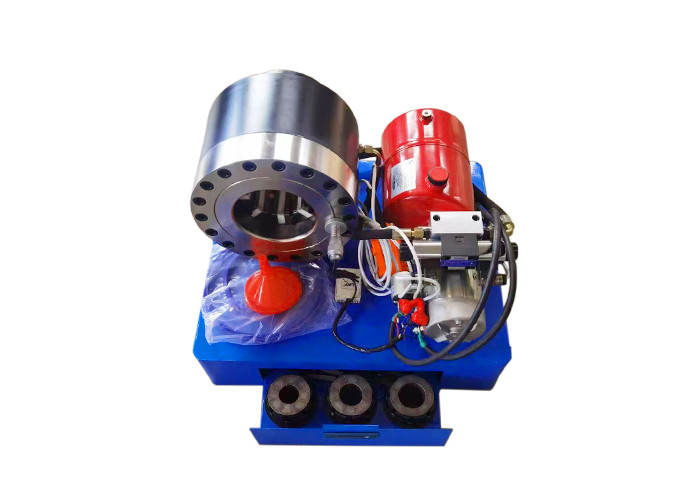

24V PORTABLE HYDRAULIC HOSE CRIMPER MS-51DC
DESCRIPTION
MS-51DC portable hydraulic hose crimping machine is a best selling model during our machines. As it is have big hose crimping ability but compact in structure and low in cost.
MAIN FEATURES
1. Crimping with high accuracy;
2. Forged steel cylinder, high stability;
3. Simple structure, low maintenance cost.
TECHNICAL DATA
|
Model |
MS-51DC Portable Hydraulic Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
300 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
600 (mm) |
|
Height |
600 (mm) |
|
Weight |
170 (KG) |
51 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
