Specifications
Highlight:
2 Inch Hose Crimping Machine
,Battery Hose Crimping Machine
,12v hydraulic hose crimper
Crimping Range:
14-87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Red
Max. Opening:
30mm
Crimping Force:
300T
System Pressure:
31.5Mpa
Power:
2.2KW
Size:
650*600*600mm
Weight:
170Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51DC
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

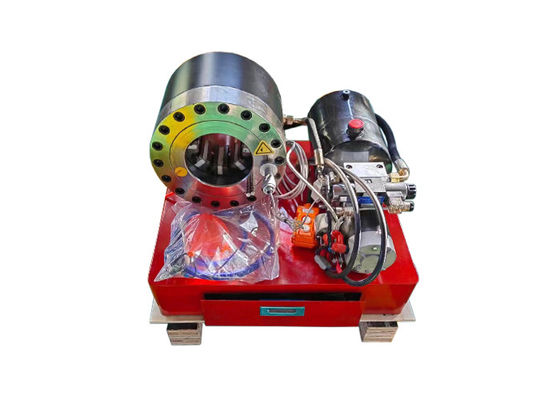

MS-51DC 12V/24V Hydraulic Hose Crimping Machine
Professional battery-powered hose crimping machine for on-site hydraulic hose assembly fabrication with 1/4" to 2" crimping capacity.
Key Features
- Forged crimping cylinder for extended service life
- Hand-held control panel for easy positioning
- High-precision crimping control micrometer
- Integrated die sets drawer for safe installation
Technical Specifications
| Model | MS-51DC Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14-87 mm |
| Crimping Force | 300 Tons |
| Hose Size | 1/4" - 2" |
| Max. Opening | 30 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.05 mm |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L*W*H) | 650 * 600 * 600 mm |
| Weight | 170 kg |
51 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 110 |
* Non-standard die sets. Customized die sets available upon request.
High Temperature Die Sets
12 die sets with heat processing, hardness 59-63HRC for extended service life
Precision Crimping Micrometer
High precision magnetic installation micrometer improves crimping efficiency and accuracy
Factory Direct Fast Delivery
Direct factory production ensures most models ship within 7 days
Applications
Ideal for on-site crimping of hydraulic hose assemblies, low pressure industrial pipes, cables, and wire connections
Additional Notes
- Custom voltage options available: 110V, 208V, 240V, 415V
- Battery operation enables portable field use
- Voltage customization available for 12V or 24V systems
