12V Hydraulic Hose Crimper
,P16HP 12V Hydraulic Hose Crimper
,P16HP 12V Crimper

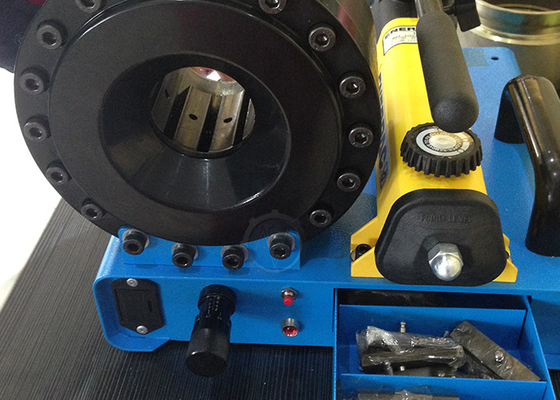

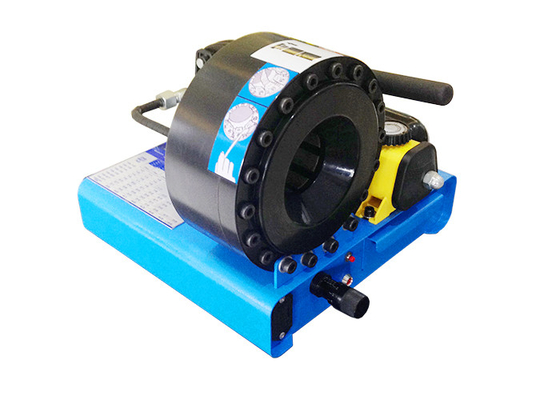

MANUAL HYDRAULIC HOSE CRIMPER MS-P16HP
DESCRIPTION
MS-P16HP is a hydraulic crimping machine same as the DC 12V hose crimping machine for its light weight, can be used in the out door. But P16HP is more flexible, as it also can be use in the place where there has no power.
ADVANTAGES
1. Small size light weight, can be take to any place;
2. World famous hydraulic enerpac pump, low maintenance cost;
3. High accuracy micrometer, high stability.
TECHNICAL DATA
|
Model |
P16HP Manual Crimping Machine |
|
Crimping Range |
14 - 47 (mm) |
|
Crimping Force |
150 (T) |
|
Hose Size |
1/4 - 1 (inch) |
|
Max. Opening |
20 (mm) |
|
Die Sets |
7 |
|
Die Set Type |
P16 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
400 (mm) |
|
Width |
320 (mm) |
|
Height |
300 (mm) |
|
Weight |
32 (KG) |
P16 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 23mm |
55 |
|
23 |
23 - 27mm |
55 |
|
27 |
27 - 31mm |
55 |
|
31 |
31 - 35mm |
65 |
|
35 |
35 - 41mm |
65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
-
