E150 Hose Pressing Machine
,780T Hose Pressing Machine
,31.5Mpa hydraulic hose press machine

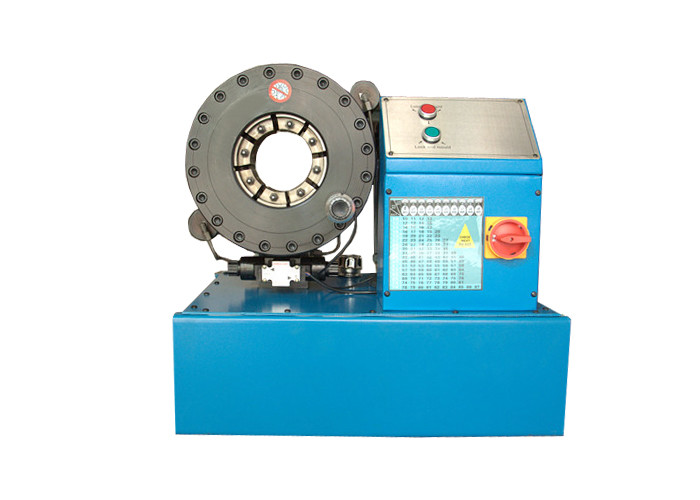

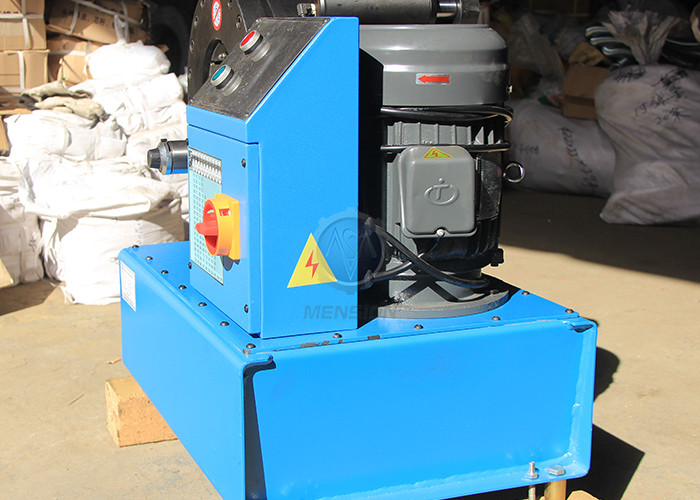

MACHINERY REPAIR HOSE PRESSING MACHINE MS-E150
DESCRIPTION
MS-E150 hose hydraulic crimping machine is specially designed for hydraulic high pressure stainless steel braided or spiraled hose up to 3 inch crimping. It has world advanced cylinder, can be used for a long time without repair.
MAIN FEATURES
1. Forged steel one piece cylinder, long service life;
2. Finn power design, high stability;
3. Micrometer with high accuracy.
TECHNICAL DATA
|
Model |
MS-E150 Hose Crimper Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) |
|
Max. Opening |
35 (mm) |
|
Die Sets |
15 |
|
Die Set Type |
150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
250 (KG) |
150 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
| 39 | 39 - 45mm | 75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
| 57 | 57 - 63mm | 100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 87mm | 110 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
