Hydraulic Hose Crimping Tool Manual Hose Crimping Machine Hose Pipe Making Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2.5inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue |
| Max. Opening | 31mm | Crimping Force | 650T |
| Control | UC PLC | Power | 3.75KW |
| Size | 650*550*650mm | Weight | 240Kg |
| Highlight | PLC Manual Hose Crimping Machine,CE Manual Hose Crimping Machine,CE Manual Hose Crimper |
||
Product Description

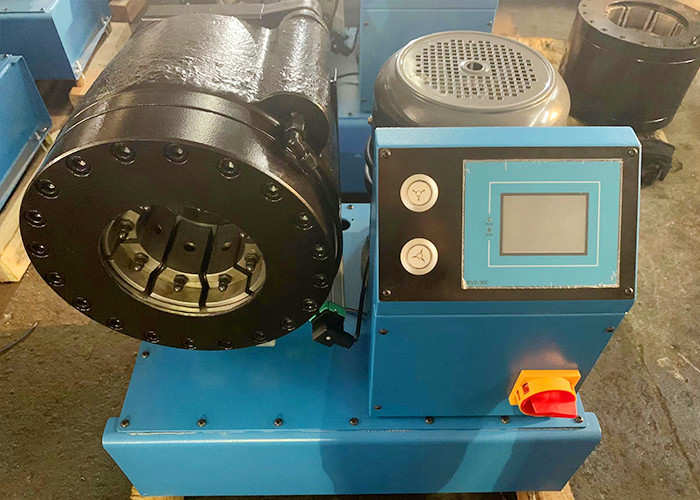

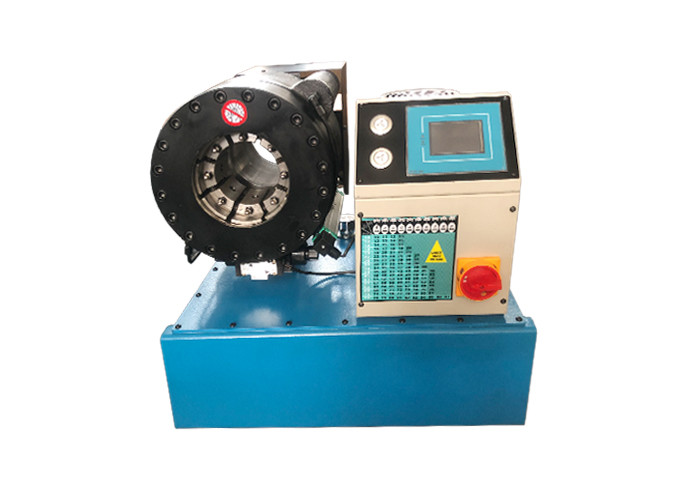

PLC MANUAL HOSE CRIMPING MACHINE
MS-NC130
DESCRIPTION
MS-NC130 is a UC controlled hose crimping machine with button operation. It is suitable for hydraulic high pressure hose from 1/4 inch to 2.5 inch making.
ADVANTAGES
1) High quality Italy electric ruler, good performance
2) Advanced hydraulic valve systems, high stability
3) Unique pressure hold for crimping
TECHNICAL DATA
|
Model |
MS-NC130 Manual Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
240 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
► HIGH QUALITY MOTOR
Copper wire with aluminium shell, great heat releasing ability
► CR12MOV MOLD
13 die sets hardness 59HRC to 63HRC with high frequency processing
► NEW CYLINDER DESIGN
► HIGH QUALITY UC CONTROL
Microcomputer control with high accuracy and stability
► WIDE APPLICATIONS
NC130 has the ability of crimping high pressure stainless steel braided hydraulic hose, low pressure water air pipes, cable and wires, steel and iron tubes, brake lines in automotive system, etc.
