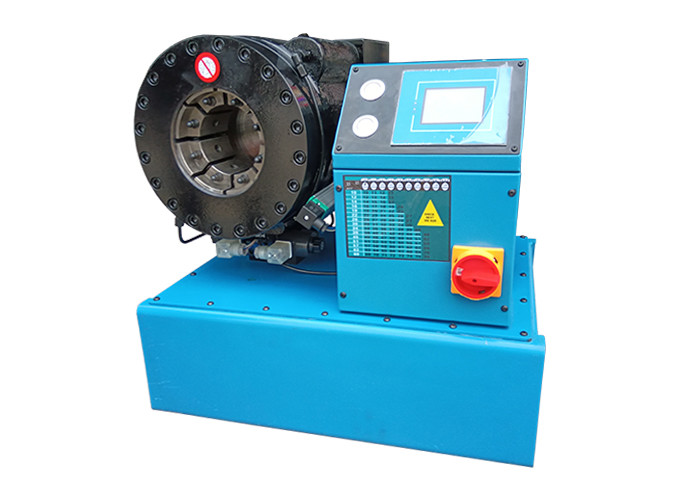

HIGH PRESSURE HYDRAULIC HOSE CRIMPER MS-NC130
DESCRIPTION

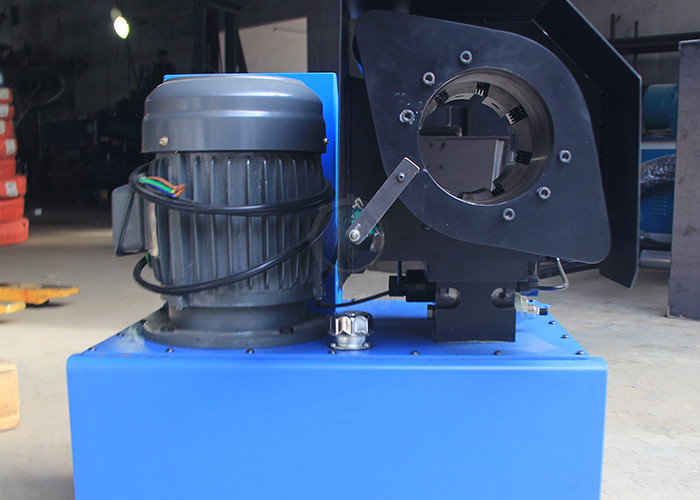

MS-NC130 hydraulic hose pressing machine is suitable for hydraulic hose from 1/4 inch to 1 1/2 inch crimping. It can be drive with a AC 220V single phase motor, or 380V three phase motor, even it can be driven by a 12V battery power.
ADVANTAGES
1. CNC control, more intelligent;
2. Die sets with high hardness;
3. Italian electric ruler, high accuracy and stability;
4. Hydraulic valave with big flow.
TECHNICAL DATA
|
Model |
MS-NC130 Hydraulic Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
240 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
