31mm Hose Crimping Machine
,NC130-I Hose Crimping Machine
,31mm rubber hose crimping tool

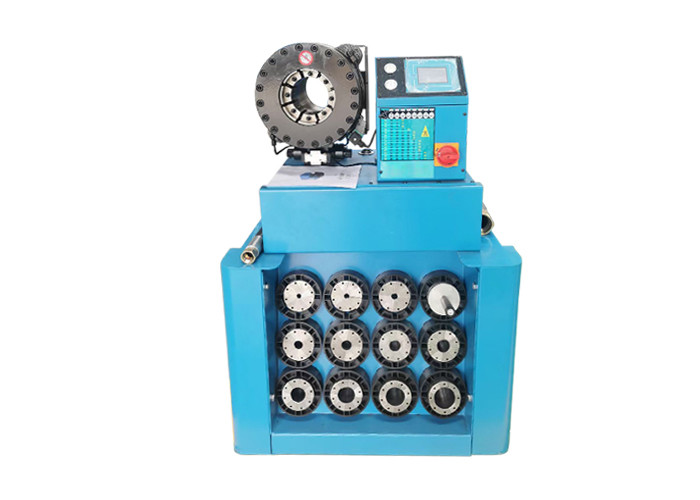

RUBBER HOSE CRIMPING MACHINE MS-NC130-I
DESCRIPTION
MS-NC130-I rubber hose crimping machine is famous for its high speed and convenient operation. It has the advanced cylinder as world famous finn power machines, has a long service life with a table performance.
ADVANTAGES
1. Famous NACHI hydraulic vlave, more stable;
2. CNC control, more intelligent;
3. Quick change for die sets, more efficient;
4. Italian electric ruler, high accuracy.
TECHNICAL DATA
|
Model |
MS-NC130-I Rubber Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
70 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
75 |
|
39 |
39 - 45 mm |
75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
|
57 |
57 - 63 mm |
100 |
|
63 |
63 - 69 mm |
110 |
|
69 |
69 - 78 mm |
110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

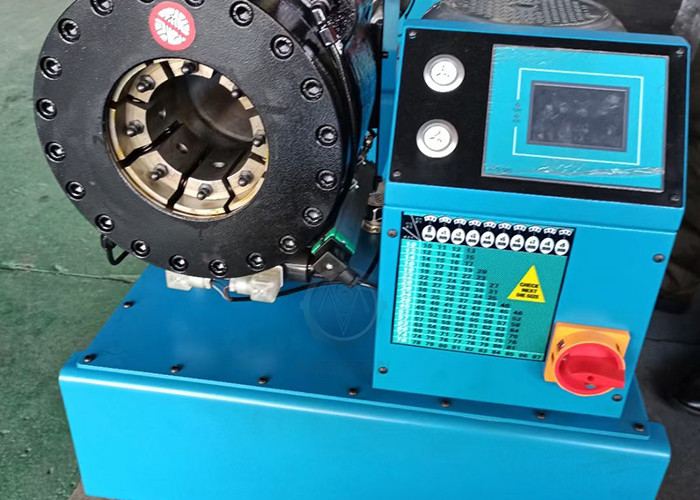

DETAILED PICTURES
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
