Mobile 12V Hydraulic Hose Crimper
,Car 12V Hydraulic Hose Crimper
,51DC mobile hose crimper

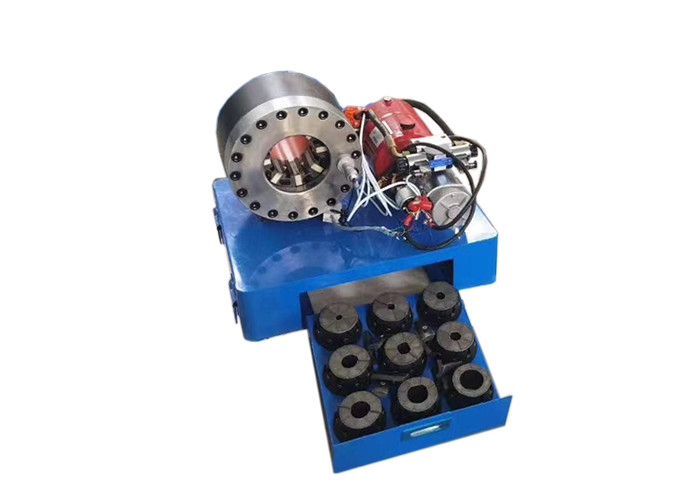

MOBILE 12V HYDRAULIC HOSE CRIMPER MS-51DC
DESCRIPTION
MS-51DC is a hose crimping machine with 12V DC power. It is suitable for hydraulic hose crimping, industrial hose making, metal steel tube swaging and diameter reducing, wire rope pressing etc.
MAIN FEATURES
1. Forged steel crimping cylinder, high hardness and stability;
2. Convenient hand hold operate panel;
3. High accurate crimping control micrometer;
4. Die sets drawer for easy installing;
TECHNICAL DATA
|
Model |
MS-51DC Crimping Machine 12V |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
300 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
600 (mm) |
|
Height |
600 (mm) |
|
Weight |
170 (KG) |
51 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
♦ * for non standard die sets;
♦ Customized die sets are available;
♦ AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale;
-
