Specifications
Highlight:
Rubber Hose Crimping Machine
,Rubber Hose Crimping Machine
,Multifunctional Panel Hose Crimping Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
51L Rubber Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
800*640*1300mm
Weight:
320Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51L
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Hydraulic 2 Inch Rubber Pipe Crimping Machine 380V Hose Crimper Press
RUBBER HOSE CRIMPING MACHINE MS-51L
Product Overview

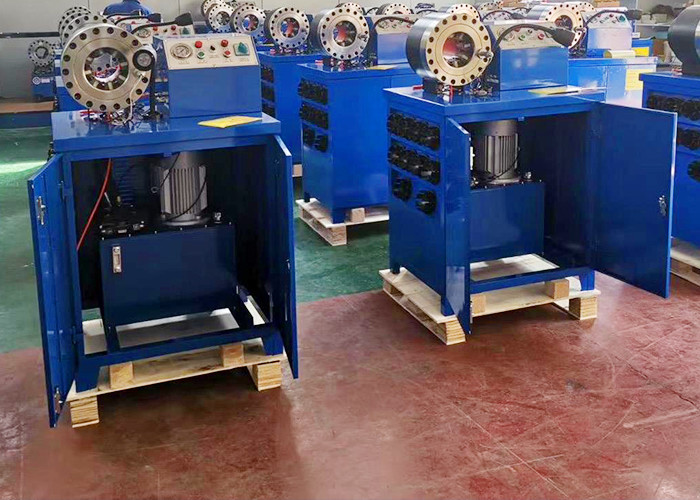

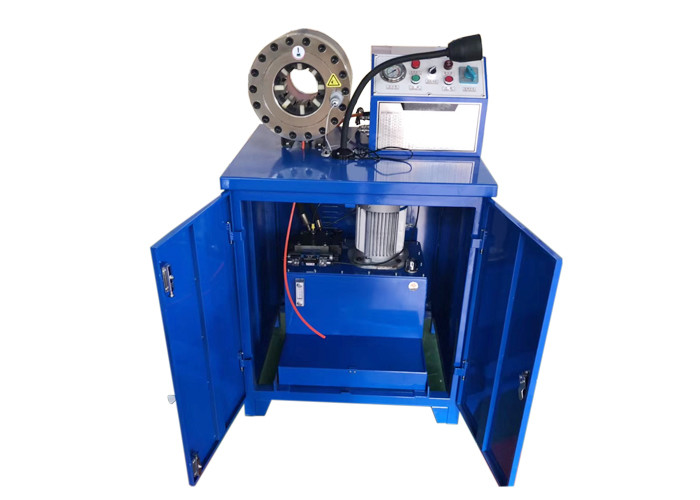

The MS-51L rubber hose crimping machine is a vertical model designed with ergonomic operator height in mind. The drive system is conveniently housed in the stand box for easy daily maintenance.
Key Features
- Forged steel hydraulic head for high stability
- Piston pump delivering substantial force with low noise operation
- Foot pedal switch with both closing and opening functions
- Integrated working light for enhanced convenience
Technical Specifications
| Model | MS-51L Rubber Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 800 (mm) |
| Width | 640 (mm) |
| Height | 1300 (mm) |
| Weight | 320 (KG) |
51 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes
* Denotes non-standard die sets
Customized die sets are available upon request
Special voltage options available: 110V, 208V, 240V, 415V
Customized die sets are available upon request
Special voltage options available: 110V, 208V, 240V, 415V
Optional Accessories
Quick Change Tool and UC control system available as optional upgrades.
