High Pressure Hydraulic Hose Crimping Tool Industrial Hose Crimping Machine Hyd Hose Crimper

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51KH
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
System Pressure 31.5Mpa Power 3KW
Size 670*430*1520mm Weight 310Kg
Highlight

Hydraulic Industrial Hose Crimper

,

51KH industrial hose crimper

,

51KH Hydraulic Hose Crimper

Leave a Message
Product Description

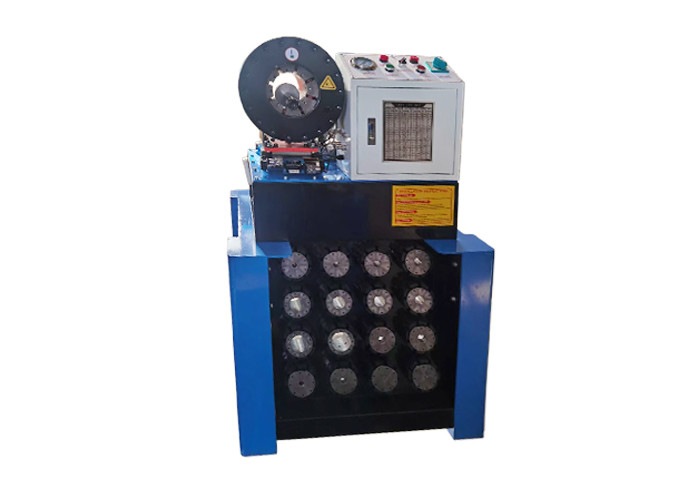

HIGH PRESSURE HOSE CRIMPER MS-51KH


DESCRIPTION



MS-51KH is a hose crimper with high pressure 31.5Mpa. It can crimp hydraulic hose from 1/4 inch to 2 inch. This hose crimping machine has been widely used in the industries like hydraulic hose, marine, railroad, pipe line conenction, wires and cable crimping.



MAIN FEATURES



1. Forged steel with one piece structure cylinder, high hardness;

2. Thoughtful operate panel, two operate mode;

3. Pressure gauge, system shown clearly during crimping;

4. Foot pedal swaitch as standard configuartion to make hands free;

5. Working light to make crimping work more clear.



TECHNICAL DATA



Model

MS-51KH High Pressure Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2(inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)



High Pressure Hydraulic Hose Crimping Tool Industrial Hose Crimping Machine Hyd Hose Crimper 0









51 CRIMPING MACHINE DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 15mm

35

15

15 - 19mm

60

19

19 - 23mm

60

23

23 - 26mm

60

26

26 - 31mm

60

31

31 - 36mm

70

36

36 - 41mm

70

41

41 - 47mm

70

47

47 - 55mm

80

55

55 - 63mm

80

63

63 - 69mm

80

69*

69 - 76mm

100



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Special voltage 110V, 208V, 240V, 415V are availbale;
