Car mobile hydraulic hose crimper
,24V mobile hydraulic hose crimper
,10 Die Sets 12v hose crimper

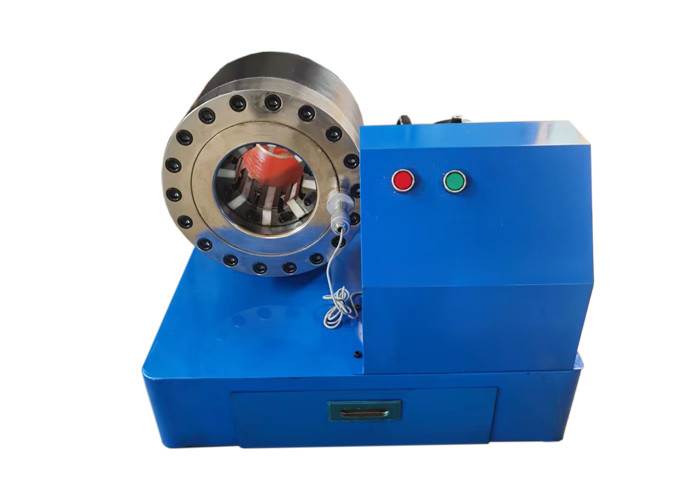

12V BATTERY HYDRAULIC HOSE CRIMPER MS-51DC
DESCRIPTION
MS-51DC is a movable hydraulic hose crimper which is used on a mobile van. It can be drive with 12V or 24V battery, and have been widely used in hose onsite crimping.
MAIN FEATURES
1. Powerful crimping capacity;
2. Light weight with small size;
3. Die sets with high hardness, long serving time.
TECHNICAL DATA
|
Model |
MS-51DC 12V Hydraulic Hose Crimper |
|
Crimping Range |
14-87 (mm) |
|
Crimping Force |
300 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
600 (mm) |
|
Height |
600 (mm) |
|
Weight |
170 (KG) |
51 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale;
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
-
WP32 is very practical for our market. It handles 1/4" to 2" hoses easily. My workers learned quickly, and efficiency improved a lot. Thank you!
