Specifications
Highlight:
Larged Opening Rubber Hose Crimping Machine
,Heavy Duty Rubber Hose Crimping Machine
,P180 Hose Crimping Machine
Crimping Range:
14 - 127mm
Hose Size:
1/4 - 4inch
Die Sets:
27
Color:
Grey And Blue
Max. Opening:
80mm
Crimping Force:
980T
Product Name:
P180 Rubber Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
6.5KW
Size:
780*1050*1650mm
Weight:
1520Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P180
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Heavy Duty Rubber Hose Crimping Machine Industrial Hydraulic Hose Crimper

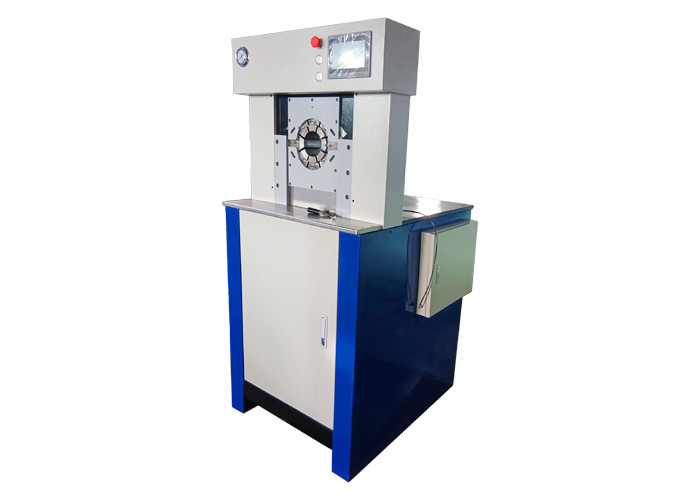

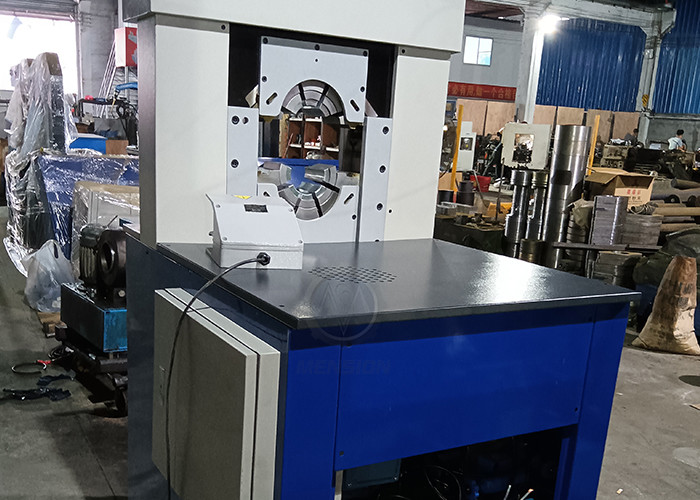

MS-P180 Rubber Hose Crimping Machine
Product Overview
The MS-P180 is our latest hose crimping machine, representing an upgraded version of traditional 180-type models. With its slim head design and powerful crimping force, this machine is the ideal solution for large-size industrial and hydraulic hose crimping applications, particularly when working with large bend fittings.
Key Features
- Advanced PLC control system for intelligent operation
- Ergonomic height design for comfortable use
- Emergency stop function for enhanced safety
Technical Specifications
| Model | MS-P180 Rubber Hose Crimper |
|---|---|
| Crimping Range | 14 - 127 (mm) |
| Crimping Force | 980 (T) |
| Hose Size | 1/4 - 4 (inch) |
| Max. Opening | 80 (mm) |
| Die Sets | 27 |
| Die Set Type | P32 + P180 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 780 (mm) |
| Width | 1050 (mm) |
| Height | 1650 (mm) |
| Weight | 1520 (KG) |
P180 Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 22 mm | 55 |
| 22 | 22 - 26 mm | 70 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 34 mm | 70 |
| 34 | 34 - 39 mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57 mm | 90 |
| 57 | 57 - 63 mm | 100 |
| 63 | 63 - 69 mm | 110 |
| 69 | 69 - 74 mm | 110 |
| 74 | 74 - 80 mm | 110 |
| 78 | 78 - 87 mm | 110 |
| 84 | 84 - 92 mm | 120 |
| 92 | 92 - 100 mm | 120 |
| 100 | 100 - 108 mm | 120 |
| 108 | 108 - 116 mm | 120 |
| 116 | 116 - 126 mm | 120 |
| 126 | 126 - 136 mm | 120 |
| 136 | 136 - 146 mm | 120 |
| 146 | 146 - 156 mm | 120 |
| 156 | 156 - 166 mm | 120 |
| 166 | 166 - 178 mm | 120 |
| 178 | 178 - 190 mm | 120 |
| 190 | 190 - 202 mm | 120 |
Important Notes
- * indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options available: 110V, 208V, 240V, 415V
- Customized die sets are available upon request
- Special voltage options available: 110V, 208V, 240V, 415V
