Specifications
Highlight:
CNC High Pressure Hose Crimper
,P180 High Pressure Hose Crimper
,CNC hydraulic Hose Crimper
Crimping Range:
14 - 127mm
Hose Size:
1/4 - 4inch
Die Sets:
27
Color:
Grey And Blue
Max. Opening:
80mm
Crimping Force:
980T
System Pressure:
31.5Mpa
Power:
6.5KW
Size:
780*1050*1650mm
Weight:
1520Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P180
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

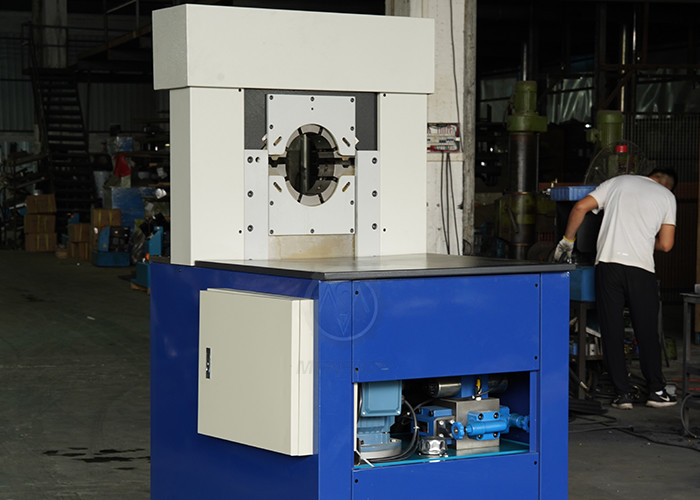

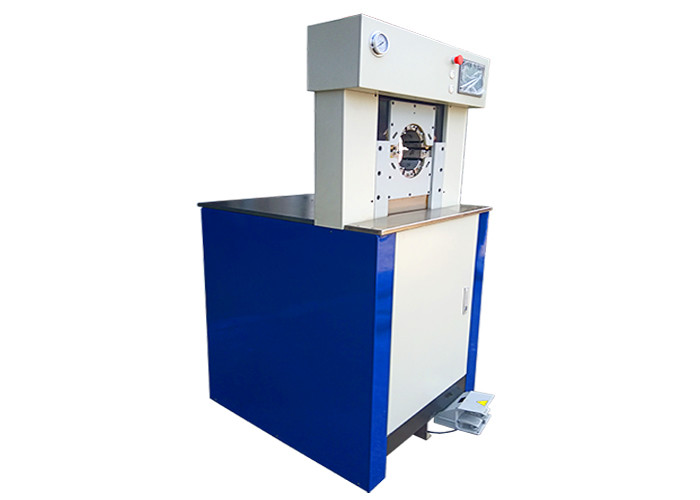

MS-P180 High Pressure Hose Crimper
The MS-P180 is a heavy-duty hydraulic hose crimping machine designed for flexible and industrial hose assembly pressing. This powerful crimper can handle hydraulic steel wire braided hose up to 4 inches in diameter.
Key Features
- Large opening capacity
- High precision crimping accuracy
- Excellent performance stability
- Low noise operation
Technical Specifications
| Model | MS-P180 Hose Crimper |
|---|---|
| Crimping Range | 14 - 127 (mm) |
| Crimping Force | 980 (T) |
| Hose Size | 1/4 - 4 (inch) |
| Max. Opening | 80 (mm) |
| Die Sets | 27 |
| Die Set Type | P32 P180 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 780 (mm) |
| Width | 1050 (mm) |
| Height | 1650 (mm) |
| Weight | 1520 (KG) |
P180 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 80mm | 110 |
| 78 | 78 - 87mm | 110 |
| 84 | 84 - 92mm | 110 |
| 92 | 92 - 100mm | 120 |
| 100 | 100 - 108mm | 120 |
| 108 | 108 - 116mm | 120 |
| 116 | 116 - 126mm | 120 |
| 126 | 126 - 136mm | 120 |
| 136 | 136 - 146mm | 120 |
| 146 | 146 - 156mm | 120 |
| 156 | 156 - 166mm | 120 |
| 166 | 166 - 178mm | 120 |
| 178 | 178 - 190mm | 120 |
| 190 | 190 - 202mm | 120 |
* denotes non-standard die sets
Customized die sets are available upon request
Special voltage options: 110V, 208V, 240V, 415V
