Specifications
Highlight:
Big Power Hose Crimping Machine
,4 Inch Hose Crimping Machine
,6.5KW CNC Hose Crimping Machine
Crimping Range:
14 - 127mm
Hose Size:
1/4 - 4inch
Die Sets:
27
Color:
Grey And Blue
Max. Opening:
80mm
Crimping Force:
980T
Product Name:
P180 Crimping Machine
Application:
Production
System Pressure:
31.5Mpa
Power:
6.5KW
Size:
780*1050*1650mm
Weight:
1520Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P180
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

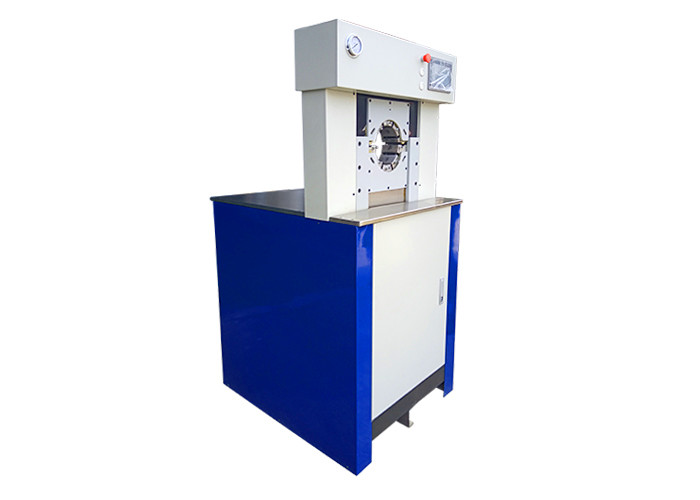

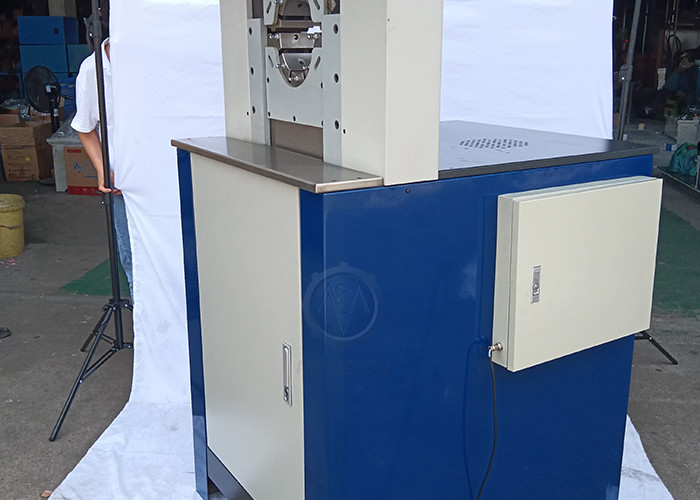

MS-P180 Hose Crimping Machine
The MS-P180 is a powerful hydraulic hose crimping machine designed for industrial applications, featuring an upgraded design from the DX68 model with enhanced capabilities for large diameter hoses.
Key Features
- Intelligent CNC control system for high stability operation
- Advanced oil transfer design for optimal performance
- Emergency stop function for enhanced safety
- Pressure gauge for clear monitoring
- Large opening for easy feeding of bent fittings
- Capable of pressing 4-inch, 6-spiral hydraulic industrial hoses
Technical Specifications
| Model | MS-P180 Hose Crimper Machine |
|---|---|
| Crimping Range | 14 - 127 mm |
| Crimping Force | 980 Tons |
| Hose Size | 1/4 - 4 inch |
| Max. Opening | 80 mm |
| Die Sets | 27 |
| Die Set Type | P32 P180 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | UC |
| Standard Voltage | 380V 50HZ |
| Motor Power | 3.75 KW |
| Length | 780 mm |
| Width | 1050 mm |
| Height | 1650 mm |
| Weight | 1520 KG |
P180 Standard Die Sets
| Die No. | Crimping Range (mm) |
|---|---|
| 6* | 6.0 - 8.0 |
| 8* | 8.0 - 10.0 |
| 10* | 10.0 - 12.0 |
| 12* | 12.0 - 14.0 |
| 14 | 14.0 - 16.0 |
| 16 | 16.0 - 19.0 |
| 19 | 19.0 - 22.0 |
| 22 | 22.0 - 26.0 |
| 26 | 26.0 - 30.0 |
| 30 | 30.0 - 34.0 |
| 34 | 34.0 - 39.0 |
| 39 | 39.0 - 45.0 |
| 45 | 45.0 - 51.0 |
| 51 | 51.0 - 57.0 |
| 57 | 57.0 - 63.0 |
| 63 | 63.0 - 69.0 |
| 69 | 69.0 - 74.0 |
| 74 | 74.0 - 80.0 |
| 78 | 78.0 - 87.0 |
| 84 | 84.0 - 92.0 |
| 92 | 92.0 - 100.0 |
| 100 | 100.0 - 108.0 |
| 108 | 108.0 - 116.0 |
| 116 | 116.0 - 126.0 |
| 126 | 126.0 - 136.0 |
| 136 | 136.0 - 146.0 |
| 146 | 146.0 - 156.0 |
| 156 | 156.0 - 166.0 |
| 166 | 166.0 - 178.0 |
| 178 | 178.0 - 190.0 |
| 190 | 190.0 - 202.0 |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Special voltages (110V, 208V, 240V, 415V) are available
Design Advantages
Large opening with wide crimping range, vertical movement for master die high accuracy
Hardened machine rack constructed with high-quality steel, providing excellent anti-rust and anti-wear capabilities
Large foot pedal included as standard accessory for convenient operation and high productivity
