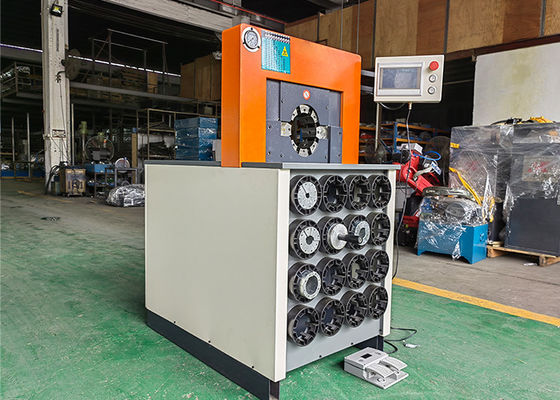

Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool

  • Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool
  • Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool
  • Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool
  • Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool
  • Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P150
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2 1/2 Inch
Die Sets 14 Color Grey And Orange
Max. Opening 61mm Crimping Force 780T
System Pressure 31.5Mpa Power 3.75KW
Size 720*970*1600mm Weight 1020Kg
Model P150 Hose Crimper
Highlight

Heavy Duty Hydraulic Hose Crimper

,

Hydraulic Hose Crimper 2 inch

,

2 inch Manual Hydraulic Hose Crimping Machine
Leave a Message
Product Description



HYDRAULIC HOSE CRIMPER MACHINE P150

DESCRIPTION


MS-P150 is a heavy duty hydraulic crimping machine. It is with super crimping force for exterme high pressure 2 inch 6 tensile steel spiraled hydraulic rubber hose assembly making. Especially when pressing big elbow fitting and coupling, P150 will be ideal choice.

ADVANTAGES


► Use high stable and performance micro computer, keep in good condition even after years of usage
► The mold can be changed and installed with self designed fork, improve working efficiency a lot
► Crimper with big foot pedal, more convenient for holding the large diameter hose
► Top quality material for die sets and hydraulic cylinder, long serving life low maintenance cost


TECHNICAL DATA



Model

MS-P150 AC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

780 (T)

Hose Size

1/4 - 2 1/2 (inch) 6 Spiral

Max. Opening

61 (mm)

Die Sets

14

Die Set Type

P150

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

UC

Standard Voltage

380 (V) Three Phase

Motor Power

3.75 (KW)

Length

720 (mm)

Width

970 (mm)

Height

1600 (mm)

Weight

1020 (KG)


Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 0

P150 HOSE CRIMPER DIE SETS


Die No.

Crimping Range

 Length

6 *

6 ... 8mm

 55mm

8 *

8 ... 10mm

 55mm

10 *

10 ... 12mm

 55mm

12 *

12 ... 14mm

 55mm

14

14 ... 16mm

 55mm

16

16 ... 19mm

 55mm

19

19 ... 22mm

 55mm

22

22 ... 26mm

 70mm

26

26 ... 30mm

 70mm

30

30 ... 34mm

 70mm

34

34 ... 39mm

 75mm

39

39 ... 45mm

 75mm

45

45 ... 51mm

 90mm

51

51 ... 57mm

 90mm

57

57 ... 63mm

 100mm

63

63 ... 69mm

 110mm

69

69 ... 74mm

 110mm
74 74 ... 80mm 110mm
78 * 78 ... 87mm 110mm


NOTE


• " * " for non standard mold
• Crimping range is based on standard mold
• Customized die sets with different shape and size are available
• Customized voltage 110V, 208V, 220V, 240V, 415V are availbale

► CRIMPING HEAD WITH ADVANCED DESIGN

Different to traditional hydraulic crimping unit design, P150 utilized a vertical movement technology for dies and master die, the advantage is it will be easier for positioning and capable of pressing large elbow or shaped fittings
Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 1

► NEW PROCESSING FOR DIE SETS

All the die sets are using surface polishing treatment after high frequency, protect the galvanized layer of the coulping when pressing on it, so the hose assembly will have better anti rust ability
Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 2

► QUICK CHANGE TOOL AND MACHINE RACK

Make die set changing more convenient and supply a safe storage of the die sets, improve the productivity
Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 3

► LARGE DOUBLE USE FOOT PEDAL

The foot pedal frees both of the operator's hand and improve the working efficiency much, with double function both control the closing and opening, make it more easier for crimping hose assembly
Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 4

APPLICATION SHOW

P150 hose crimper machine is especially designed for hydraulic high pressure hose with big elbow fittings crimping, it is widely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work
Large Hose Crimper Hydraulic Hose Fitting Crimping Machine 3 8 Hose Crimping Tool 5
