Specifications
Highlight:
Hydraulic Hose Crimping Machine P32CS
,P32CS Manual Hose Crimper
,Mobile Car Battery Manual Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
280T
System Pressure:
28Mpa
Power:
2.2KW
Size:
630*540*420mm
Weight:
150Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P32CS
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

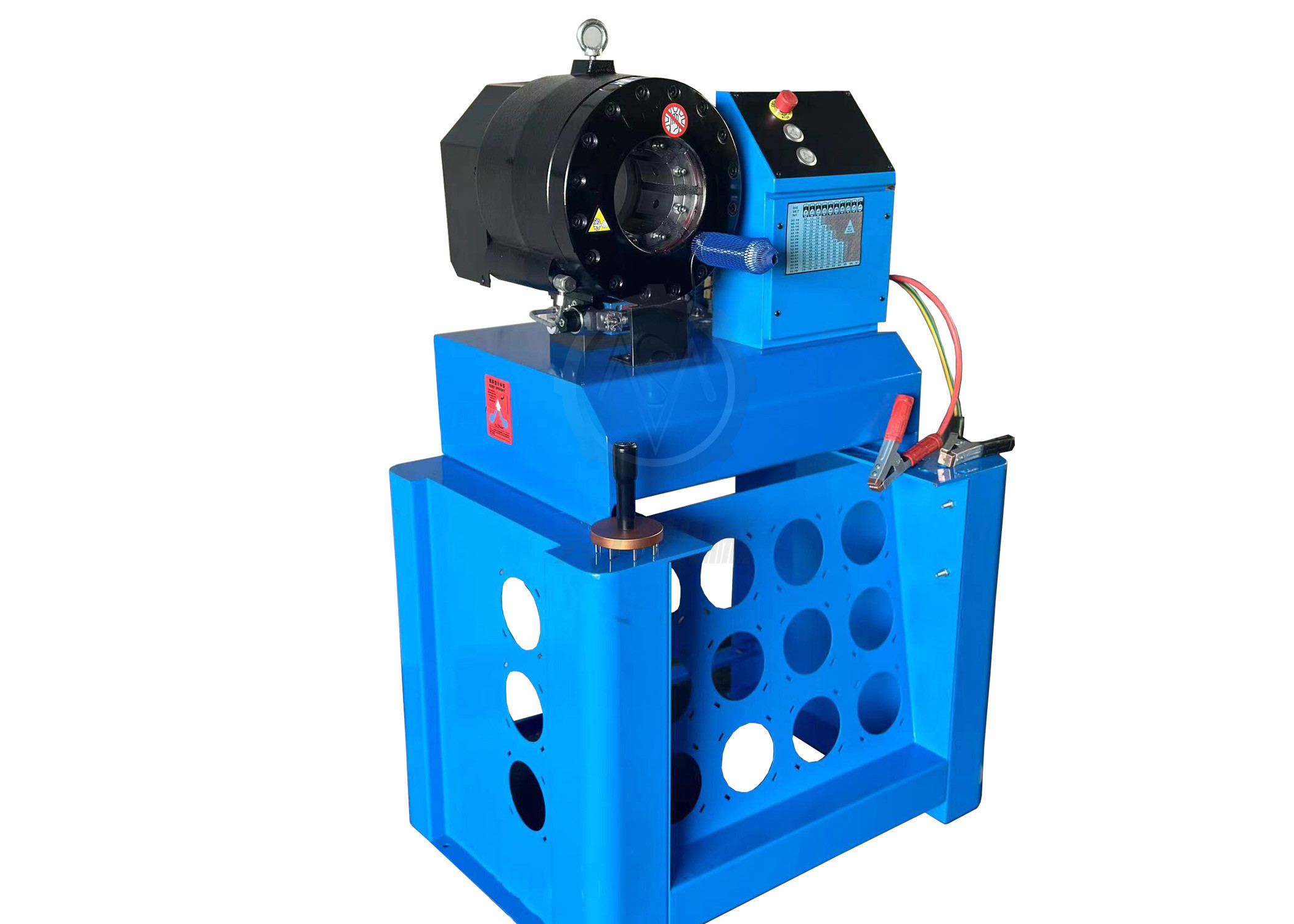

MS-P32CS Hydraulic Hose Crimping Machine
Professional Automotive Hydraulic Solution
The MS-P32CS hydraulic hose crimper is engineered for industrial and agricultural vehicle repair workshops. Powered by 12V or 24V battery systems, this machine offers portable installation directly on vehicles.
Key Advantages
- High-speed operation with precision crimping
- Die base design for enhanced efficiency
- Quick-change die sets - no individual installation required
Technical Specifications
| Specification | Value |
|---|---|
| Model | MS-P32CS Crimping Hose Machine |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 280 Tons |
| Hose Size | 1/4 - 2.5 inch |
| Maximum Opening | 31 mm |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 28 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Standard Voltage | 24 V |
| Motor Power | 2.2 KW |
| Length | 630 mm |
| Width | 540 mm |
| Height | 420 mm |
| Weight | 150 KG |
P32 Hose Crimper Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 mm |
| 8* | 8 - 10 mm | 55 mm |
| 10* | 10 - 12 mm | 55 mm |
| 12* | 12 - 14 mm | 55 mm |
| 14 | 14 - 16 mm | 55 mm |
| 16 | 16 - 19 mm | 55 mm |
| 19 | 19 - 22 mm | 55 mm |
| 22 | 22 - 26 mm | 70 mm |
| 26 | 26 - 30 mm | 70 mm |
| 30 | 30 - 34 mm | 70 mm |
| 34 | 34 - 39 mm | 75 mm |
| 39 | 39 - 45 mm | 75 mm |
| 45 | 45 - 51 mm | 90 mm |
| 51 | 51 - 57 mm | 90 mm |
| 57 | 57 - 63 mm | 100 mm |
| 63 | 63 - 69 mm | 110 mm |
| 69 | 69 - 76 mm | 110 mm |
| 74* | 74 - 80 mm | 110 mm |
| 78* | 78 - 87 mm | 110 mm |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets with different shapes and sizes available
• 12V voltage option available
• Customized die sets with different shapes and sizes available
• 12V voltage option available
Optional Accessories
- Quick Change Tool for Mold
- Die Set Box
- Car Installing Unit
