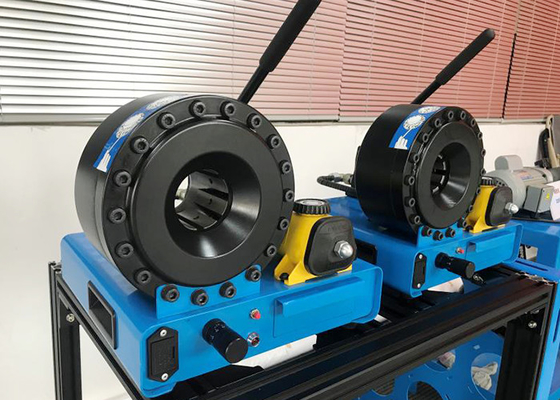

Portable Manual Hydraulic Hose Crimper
,Manual Hydraulic Hose Crimper P16
,P16 Hydraulic Cable Crimping Machine
MANUAL HOSE CRIMPER P16HP
DESCRIPTION
MS-P16 is a manual operate hose crimping machine. It is with light weight, so can be easily taken to any place that need. When doing hose assembly crimping where there has no electricity supply, this small crimper will be the ideal choice.
ADVANTAGES
► Famous "ENERPAC" hydraulic valve, high stability
► Simple design, easy for novice
► Big crimping force, for up to 4 steel wire hose
► High productivity
► Low maintenance cost
TECHNICAL DATA
|
Model |
P16 Hose Crimper Machine |
|
Crimping Range |
14 - 47 (mm) |
|
Crimping Force |
150 (T) |
|
Hose Size |
1/4 - 1 (inch) |
|
Max. Opening |
20 (mm) |
|
Die Sets |
7 |
|
Die Set Type |
P16 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
400 (mm) |
|
Width |
320 (mm) |
|
Height |
300 (mm) |
|
Weight |
32 (KG) |
P16 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 ... 8mm |
55 |
|
8* |
8 ... 10mm |
55 |
|
10* |
10 ... 12mm |
55 |
|
12* |
12 ... 14mm |
55 |
|
14 |
14 ... 16mm |
55 |
|
16 |
16 ... 19mm |
55 |
|
19 |
19 ... 23mm |
55 |
|
23 |
23 ... 27mm |
55 |
|
27 |
27 ... 31mm |
55 |
|
31 |
31 ... 35mm |
65 |
|
35 |
35 ... 41mm |
65 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Max. opening is the stroke between die sets fully closed and fully opened
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC control
• Electric Crimper
DEAILED PICTURES

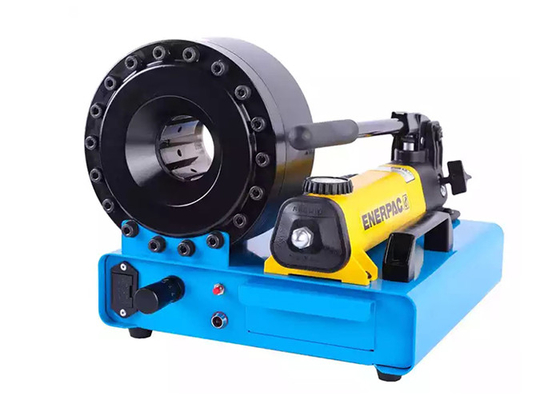

Famous "ENERPAC" hydraulic oil pump
Die sets for hydraulic hose assembly pressing
Package with ply wood case, free for furmigation
CRIMPING SAMPLES
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
