Specifications
Highlight:
51M Manual Hose Crimping Machine
,Manual Hose Crimping Machine High Pressure
,High Pressure Manual Hose Crimper
Product Name:
51M Manual Hose Crimping Machine
Crimping Range:
14-87mm
Hose Size:
1/4-2inch
Die Sets:
10
Max. Opening:
31mm
Crimping Force:
350T
System Pressure:
31.5Mpa
Power:
Hand Pump
Size:
730*550*680mm
Weight:
170Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51M
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Hydraulic Cable Crimpers - Manual Hose Crimper & Hydraulic Hose Assembly Machine

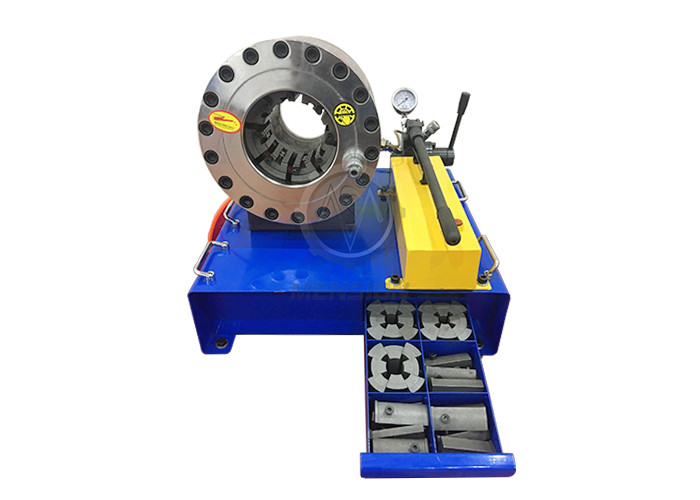

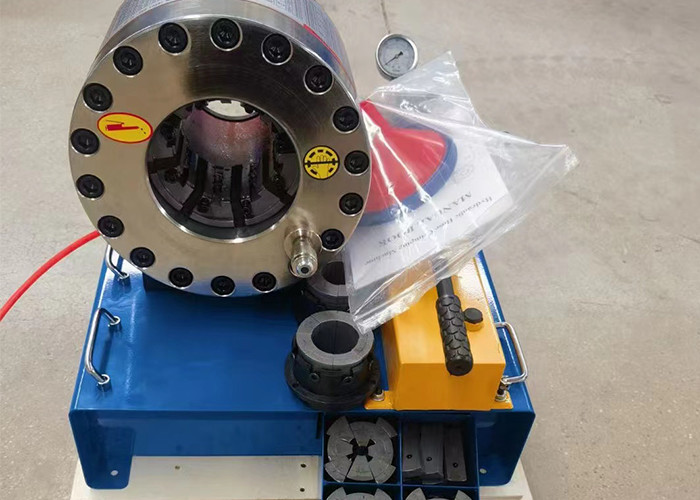

MS-51M Manual Cable Crimping Machine
Product Overview
The MS-51M manual hand pump hose pressing machine is specifically engineered for field crimping operations where electrical power is unavailable. Equipped with a high-power hydraulic manual oil pump, this machine can effectively crimp hydraulic high-pressure flexible hoses up to 51mm for 4SH and 4SP applications.
Key Advantages
- Compact design for easy portability to any worksite
- High-precision dial for enhanced operational convenience
- Hard-polished molds with superior hardness characteristics
- Secure die sets hold box for safety and organization
Technical Specifications
| Model | 51M Manual Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 350 Tons |
| Hose Size | 1/4 - 2 inch |
| Maximum Opening | 31 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Power Source | Manual Pump |
| Motor Power | Manual Pump |
| Dimensions (L*W*H) | 730 * 550 * 680 mm |
| Weight | 170 kg |
Important Notes
• Customized die sets are available upon request
• Maximum opening measurement represents the stroke between fully closed and fully opened die sets
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
51 Crimper Standard Die Sets
| Die Number | Crimping Range |
|---|---|
| 6* | 6 - 8 mm |
| 8* | 8 - 10 mm |
| 10* | 10 - 12 mm |
| 12* | 12 - 14 mm |
| 14 | 14 - 16 mm |
| 16 | 16 - 19 mm |
| 19 | 19 - 23 mm |
| 23 | 23 - 27 mm |
| 27 | 27 - 31 mm |
| 31 | 31 - 35 mm |
| 35 | 35 - 41 mm |
