Specifications
Highlight:
RoHS Manual Hose Crimping Machine
,Manual Hose Crimping Machine 51DC
,51DC Hydraulic Pipe Crimper
Name:
Manual Hose Crimping Machine 51DC
Hose Size:
1/4 - 2inch
Die Sets:
10
Voltage:
12V
Max. Opening:
30mm
Crimping Force:
300T
System Pressure:
31.5Mpa
Power:
2.2KW
Size:
650*600*600mm
Weight:
170Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51DC
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

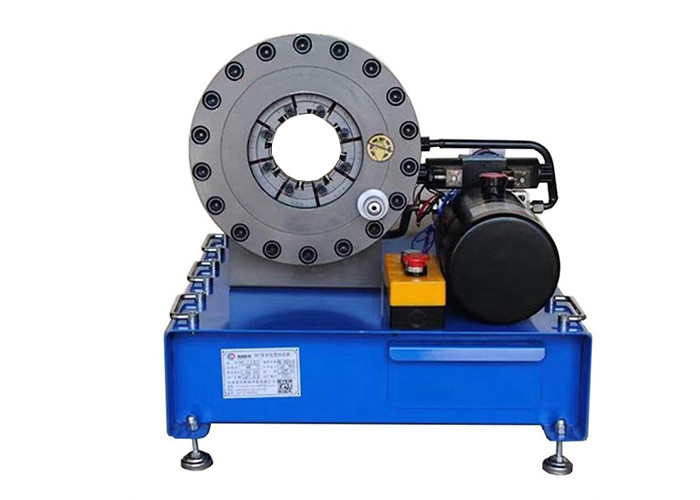

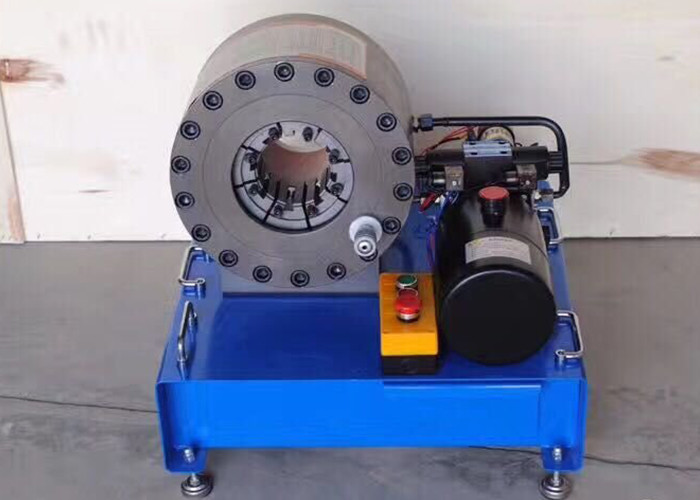

Manual Hydraulic Hose Crimping Machine AC Hose Crimp Ferrules Crimp Hose Ends
24V ROHS Manual Hydraulic Hose Crimping Machine MS-51DC
Product Overview
The MS-51DC is a battery-powered hose crimper machine designed for 12V/24V mobile vehicle applications. This portable solution enables on-site hose crimping operations and comes with 10 die sets suitable for high-pressure flexible hose assembly manufacturing from 1/4" to 2".
Main Features
- Unique one-piece cylinder design for easy maintenance
- Simple operation with front-mounted button control
- High precision crimping capability
- Efficient oil pump system for energy savings
Technical Specifications
| Model | MS-51DC Manual Hose Pressing Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 300 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 12 (V) / 24 (V) |
| Motor Power | 2.2 (KW) |
| Length | 650 (mm) |
| Width | 600 (mm) |
| Height | 600 (mm) |
| Weight | 170 (KG) |
Additional Options
Customized die sets are available upon request. Additional AC voltage options include 110V, 208V, 220V, 240V, 380V, and 415V configurations.
51 Standard Die Sets
| Die No. | Crimping Range |
|---|---|
| 6* | 6 - 8mm |
| 8* | 8 - 10mm |
| 10* | 10 - 12mm |
| 12* | 12 - 15mm |
| 15 | 15 - 19mm |
| 19 | 19 - 23mm |
| 23 | 23 - 26mm |
| 26 | 26 - 31mm |
| 31 | 31 - 36mm |
| 36 | 36 - 41mm |
| 41 | 41 - 47mm |
| 47 | 47 - 55mm |
| 55 | 55 - 63mm |
| 63 | 63 - 69mm |
| 69* | 69 - 76mm |
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
SI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
Works good, I use it to press the 2 wires hose SAE, perfect!
