E130 Manual Hydraulic Hose Crimping Machine
,Manual Hydraulic Hose Crimping Machine 4SH
,4SH Hose Pipe Crimping Machine
WORKSHOP CHOOSE MANUAL HOSE CRIMPER
MS-E130
MAIN ADVANTAGES
1) Unique two bevel design, high force
2) Advanced oil system, auto heat releasing
3) Quick crimping and opening speed
4) High efficiency and top accurate crimping with FINN Dial
5) Stable performance even after years of service
DESCRIPTION

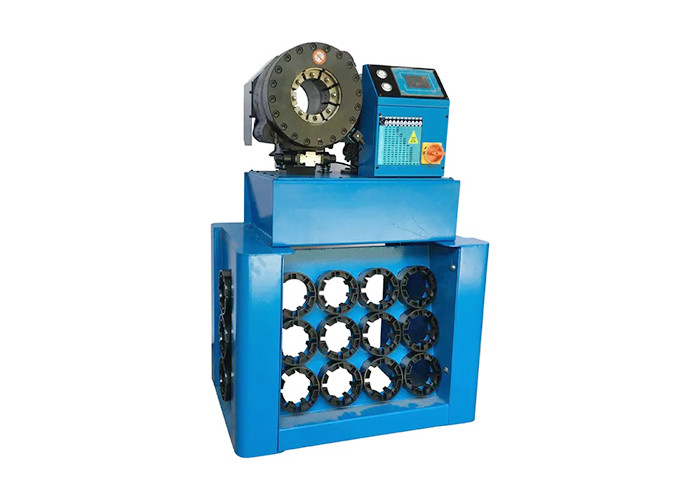

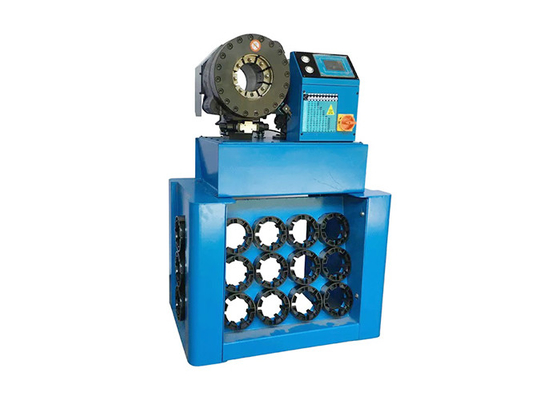

MS-E130 hose crimper is designed based on the famous FINN models with compact structure and big crimping force. It is capable of crimping high pressure steel braided hose from 1/4'' to 2''.
TECHNICAL DATA
|
Model |
MS-130 Manual Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
25 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
130 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
560 (mm) |
|
Weight |
190 (KG) |
130 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
60 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
110 |
NOTE
1) Customized die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) " * " for non standard die sets
OPTIONAL
1) Quick Change Tool
2) Quick Change Die Set Rack;
3) UC control;
4) Foot Pedal;
5) Pressure Gauge;
6) Normal Rack
► QUALITY FORGED HYDRAULIC HEAD
High surface hardness 55-58HRC, good anti wear and dust, long service time.
► DOUBLE BEVEL DIE BASE
Unique design, big crimping force, well connect with the oil cylinder
► FINN DIAMETER DIAL
High accuracy up 0.01mm, stable performance, ideal choice for accurate crimping work
► SAMPLES AND APPLICATIONS
Crimping machine can be used for quick jointing of material, like high pressure hydraulic hose, industrial low pressure hoses, pipes, or cable wire.
-
CReliable quality, easy to use, a great helper for starting a business.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
