Specifications
Highlight:
2'' Hydraulic Hose Crimping Machine
,Hydraulic Hose Crimping Machine 51KH
,Hydraulic Hose Crimping Machine 4KW
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
System Pressure:
31.5Mpa
Power:
4KW
Size:
670*430*1520mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51KH
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

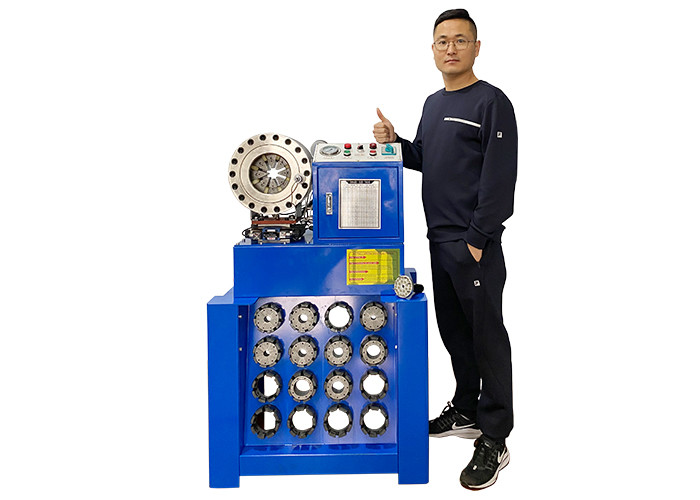

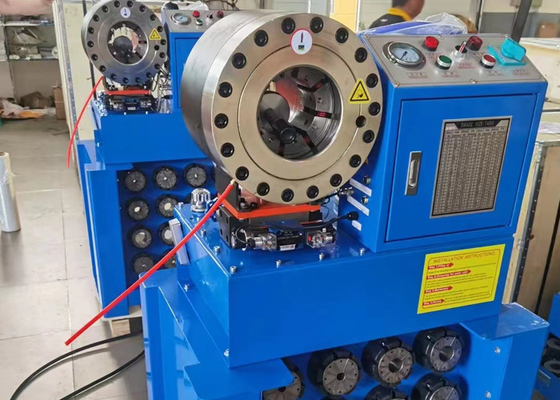

MS-51KH Pressure Hydraulic Hose Crimping Machine
2 Inch Hydraulic Hose Crimping Machine 51KH High Pressure Industrial Service
Product Overview
The MS-51KH is renowned for its extensive crimping range and user-friendly operating system. This machine represents the ideal solution for establishing a hydraulic hose assembly production workshop with limited budget requirements while maintaining high-performance specifications.
Key Features
- Single-piece crimping cylinder with exceptional hardness and stability
- Effortless switching between automatic and manual operation modes
- Integrated working lamp for clear crimping status visibility
- Rapid die set change capability to enhance productivity
- Oil level indicator for monitoring system oil quantity and quality
Technical Specifications
| Model | MS-51KH Pressure Hydraulic Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 12 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380(V) |
| Motor Power | 4 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 1520 (mm) |
| Weight | 310 (KG) Without Oil |
51 Crimper Die Sets Specifications
| Die No. | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 35 |
| 8* | 8.0 - 10.0 | 35 |
| 10* | 10.0 - 12.0 | 35 |
| 12* | 12.0 - 15.0 | 35 |
| 15 | 15.0 - 19.0 | 60 |
| 19 | 19.0 - 23.0 | 60 |
| 23 | 23.0 - 26.0 | 60 |
| 26 | 26.0 - 31.0 | 60 |
| 31 | 31.0 - 36.0 | 70 |
| 36 | 36.0 - 41.0 | 70 |
| 41 | 41.0 - 47.0 | 70 |
| 47 | 47.0 - 55.0 | 80 |
| 55 | 55.0 - 63.0 | 80 |
| 63 | 63.0 - 69.0 | 80 |
| 69* | 69.0 - 76.0 | 90 |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets available upon request
• Special voltage configurations available: 110V, 208V, 240V, 415V
Die Set Construction Details
10-16 Die Sets
Molds feature exceptional hardness rating of 59-63HRC with a 0.02mm surface layer, ensuring extended service life and superior operational stability.
Industrial Applications
The 51KH crimping machine serves multiple industrial applications including excavator repair services, hydraulic hose assembly production, oil hose fabrication, high and low pressure hose manufacturing, industrial pipe systems, and stainless steel tube processing.
Overall Rating
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
