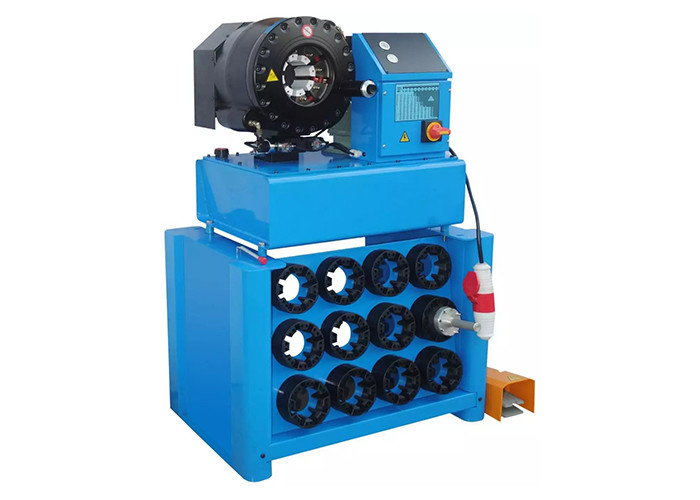

Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine

  • Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine
  • Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130-I
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2 1/2 Inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
System Pressure 31.5Mpa Power 3KW
Size 650*550*1360mm Weight 310Kg
Product Name E130-I Hydraulic Hose Crimping Machine
Highlight

Industrial Pressure Hose Crimping Machine

,

Ergonomic Human Hose Crimping Machine

,

Blue Hose Crimping Machine
Leave a Message
Product Description

Industrial Pressure Hose Crimping Machine E130 - I Ergonomic Human Design



INDUSTRIAL HYDRAULIC HOSE CRIMPING MACHINE MS-E130-I

DESCRIPTION



MS-E130-I pressure hose crimping machine with hydraulic power is the most favored type for mass production of hose assembly. It is capable of crimping hose from 1/8'' to 2 1/2'', and for 3'' industrial hose.



FEATURES



1. Die set rack, enable an easy and safe die installing;

2. Double bevel master die, high accuracy and big force;

3. Pedal and button control, safe and improve productivity;

4. Customer freindly button control, quick and easy.



TECHNICAL DATA



Model

MS-E130-I Hydraulic Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2 1/2 (inch)

Max. Opening

31mm

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)



Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine 0





P32 CRIMPING MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 55

8*

8 - 10mm

 55

10*

10 - 12mm

 55

12*

12 - 14mm

 55

14

14 - 16mm

 55

16

16 - 19mm

 55

19

19 - 22mm

 55

22

22 - 26mm

 70

26

26 - 30mm

 70

30

30 - 34mm

 70

34

34 - 39mm

 75

39

39 - 45mm

 75

45

45 - 51mm

 90

51

51 - 57mm

 90

57

57 - 63mm

 100

63

63 - 69mm

 110

69

69 - 78mm

 110



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Special voltage 110V, 208V, 240V, 415V are availbale;





Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine 1
