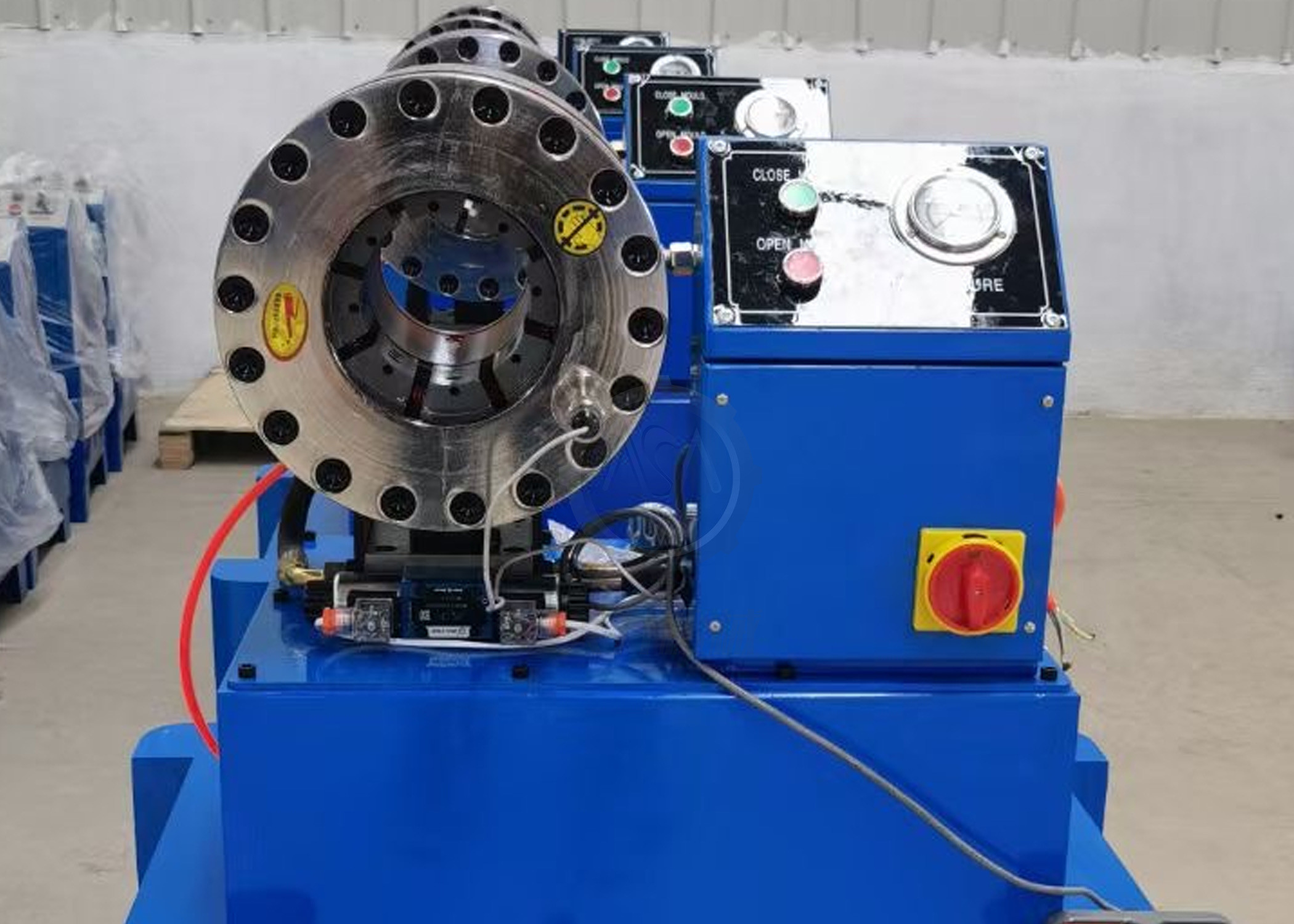

AUTOMOTIVE HOSE CRIMPING MACHINE MS-51
DESCRIPTION
MS-51 pressure hose pressing machine is suitable for one-off, vehicle maintenance jobs and mass hose assembly producing industry. It is with reasonable button position, convenient for user to operate. The automatic crimping function can improve the production efficiency.
MAIN FEATURES
1. Simple and precise crimping for hose assembly;
2. Customized die sets can meet different demand;
3. Pedal switch enable holding the big hose with hands;
4. Easy changing between automatic and manual mode.
TECHNICAL DATA
|
Model |
MS-51 Pressure Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
820 (mm) |
|
Weight |
260 (KG) |

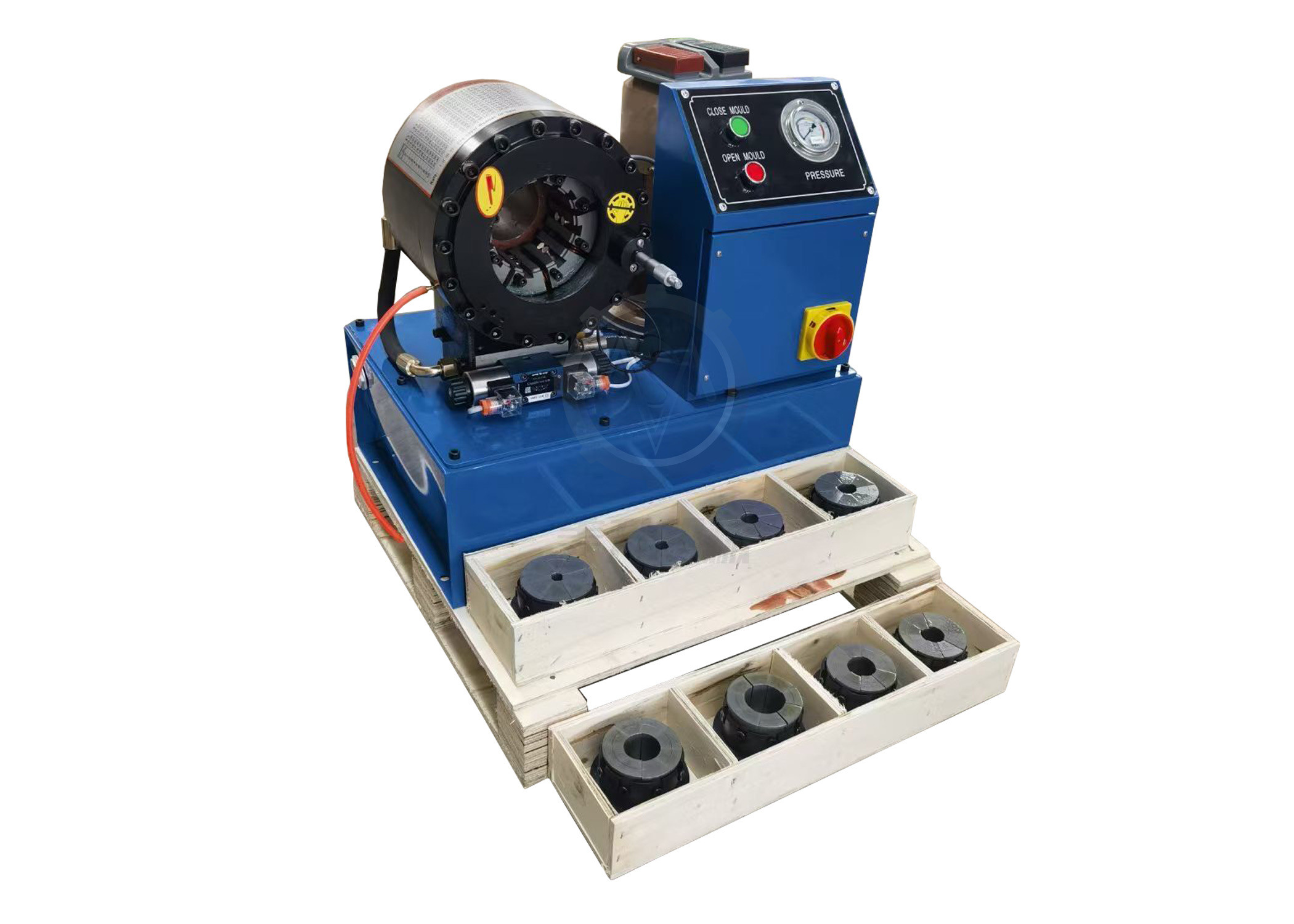

51 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
• * for non standard die sets;
• Customized die sets are available;
• Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack;
-
