Service Hydraulic Hose Swage Machine DX68 High Pressure Pipe Pressing

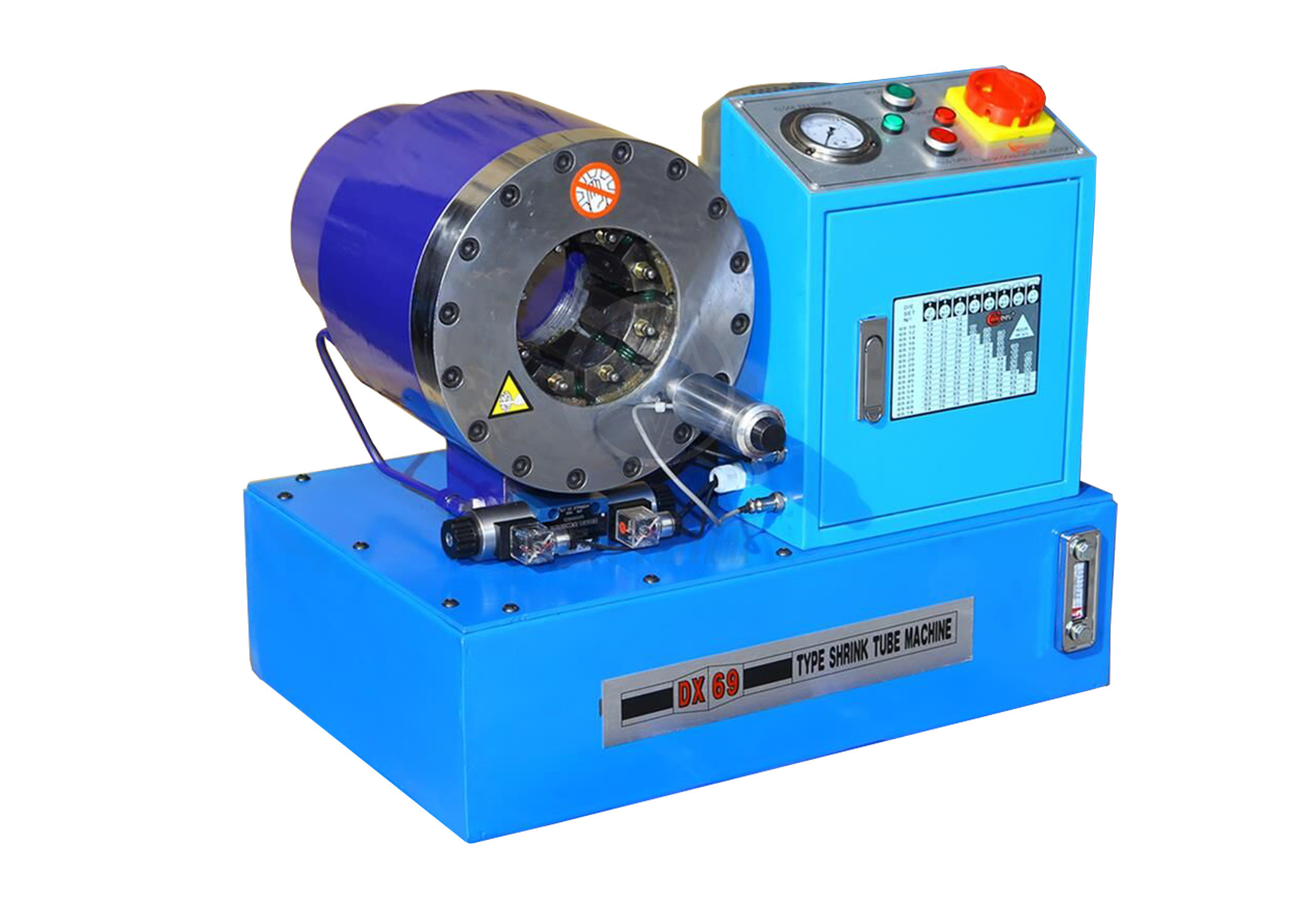

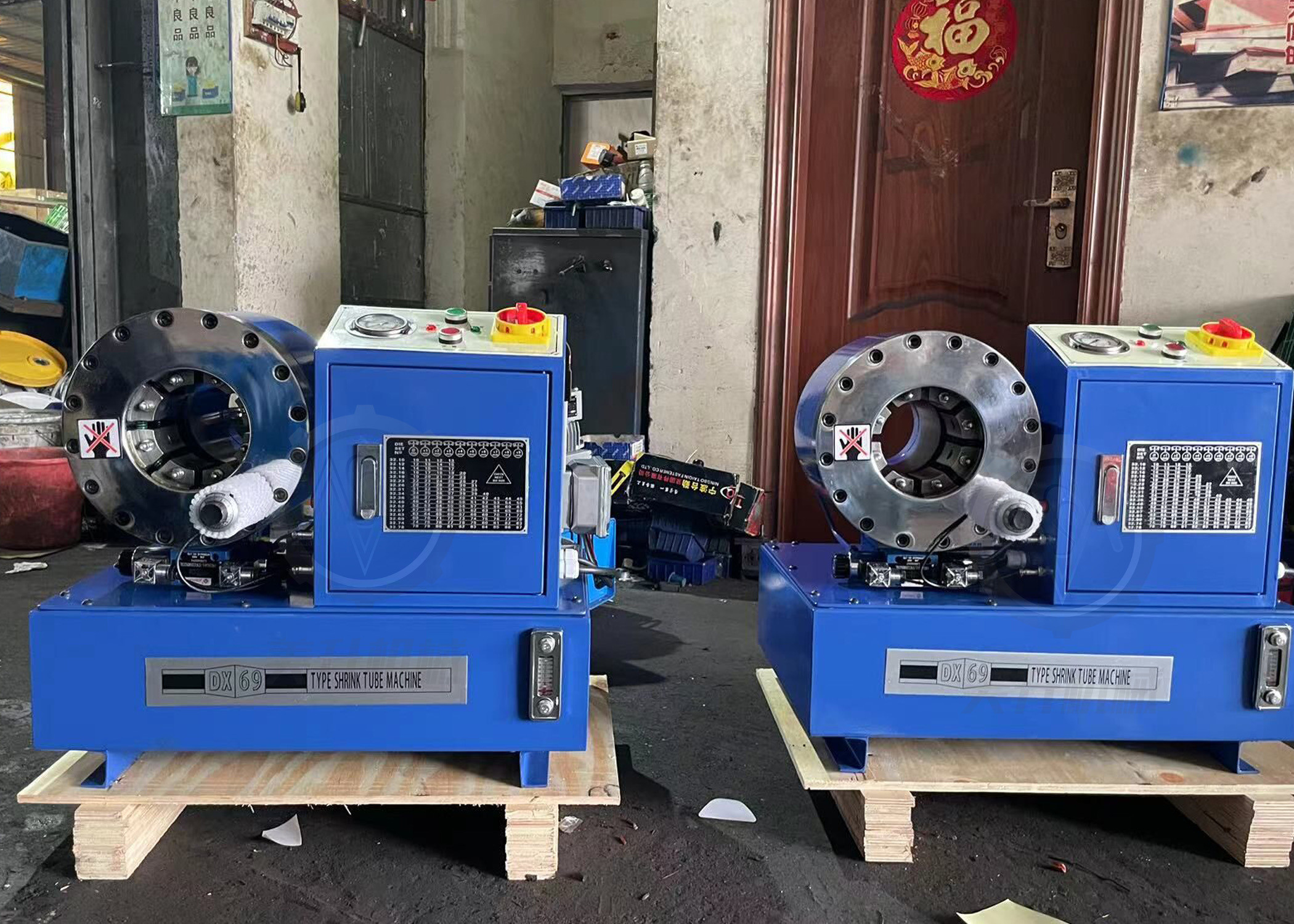

SERVICE HYDRAULIC HOSE SWAGE DX-68
DESCRIPTION
DX68 is electric hose crimping machine with big crimping range from 1/4 inch to 2 inch high pressure hose with high tensile stainless steel braided wire. As standard it offers 10 die sets for free, in addition to these standard die sets, a wide range of special die sets is available on request.
MAIN FEATURES
1. Electric crimper for service;
2. Quick speed, large production;
3. High precision, good crimping effect;
4. Nice durability.
TECHNICAL DATA
|
Model |
DX-68 Portable Hydraulic Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
68 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
820 (mm) |
|
Weight |
260 (KG) |
68 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
-
