Specifications
Highlight:
Ergonomic Design Hydraulic Hose Crimper
,Hydraulic Rubber Hose Crimper
,3'' Hydraulic Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
P32 Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P32
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

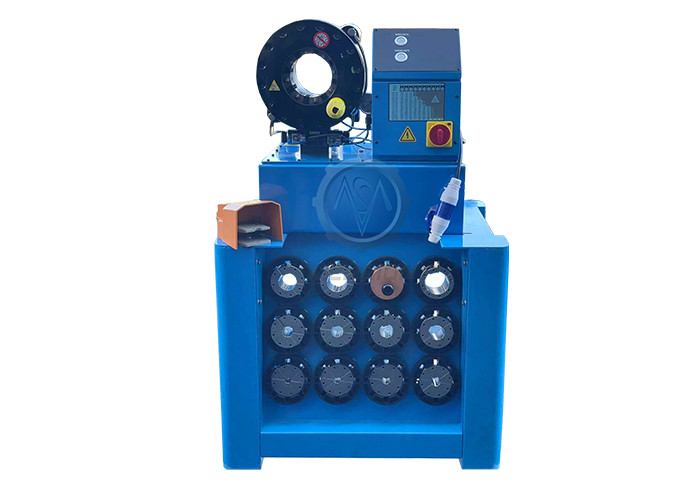

MS-P32 Hydraulic Rubber Hose Crimping Machine
Professional hydraulic hose crimper designed for industrial hose repair workshops and hydraulic hose fitting stores, featuring a 3-inch crimping capacity.
Key Advantages
- Ergonomic design for operator comfort
- High stability during operation
- Large production capacity
- Comfortable and intuitive operation
Technical Specifications
| Model | MS-P32 Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 650 Tons |
| Hose Size | 1/4 - 2.5 inch |
| Max. Opening | 31 mm |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3.75 KW |
| Length | 650 mm |
| Width | 550 mm |
| Height | 1360 mm |
| Weight | 310 KG |
P32 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
Important Notes
- * denotes non-standard die sets
- Customized die sets are available upon request
- Special voltage options: 110V, 208V, 240V, 415V available
