Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine

  • Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine
  • Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine
  • Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS - DX69
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms PayPal, T/T, WU, MG
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2 Inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product Name MS - DX69 Pressing Machine Application Workshop
System Pressure 31.5Mpa Power 3KW / 4KW
Size 630*450*560mm Weight 190Kg
Highlight

Multi Functional Hydraulic Hose Crimping Machine

,

Automatic Hydraulic Hose Crimping Machine

,

Hydraulic Hose Crimper Multi Functional
Leave a Message
Product Description

Multi Functional Automatic Hydraulic Hose Crimping Machine DX69 For Hose Repairs



HYDRAULIC HOSE FITTING CRIMPING MACHINE MS - DX69

DESCRIPTION



MS-DX69 hose crimper is designed for hydraulic hose from 6mm to 51mm with one to six layers braided and spiraled. With advanced technology, the machine has become one of the best choice for workshop hose assemblies making industry. This pressing equipment is offered with standard 10 dies, special die sets with different shape, size and length makes the crimper a multi-functional type.



FEATURES



1. Quick dies sets closing and opening;

2. High precision;

3. Famous brand spare parts;

4. Double conical connection.



TECHNICAL DATA



Model

DX - 69 Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 1 - 6 Layers

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

69

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW) / 4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Weight

190 (KG)

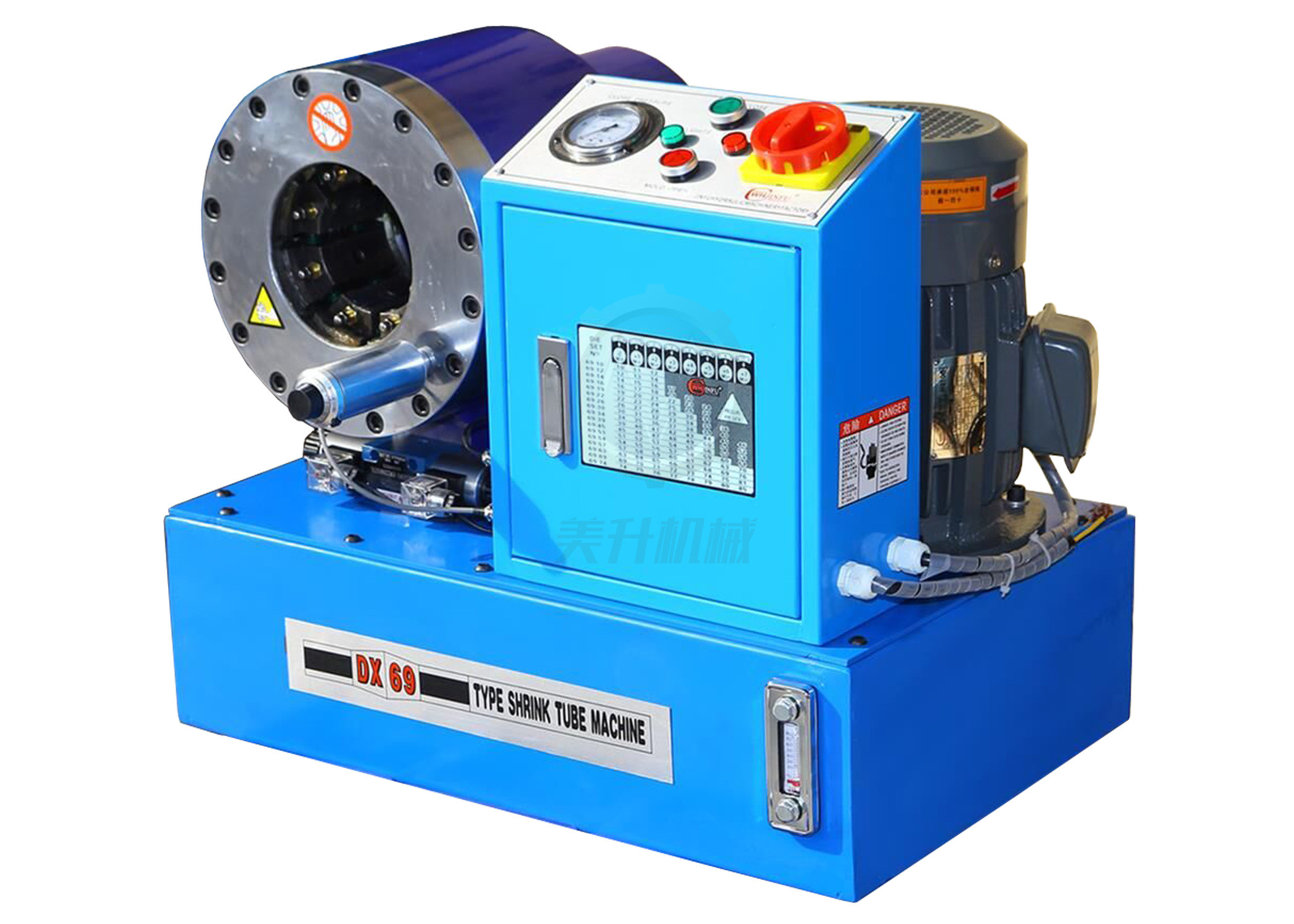

Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine 0

69 CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 14 mm

 35

14

14 - 16 mm

 60

16

16 - 20 mm

 60

20

20 - 22 mm

 60

22

22 - 26 mm

 60

26

26 - 30 mm

 70

30

30 - 38 mm

 70

38

38 - 46 mm

 70

46

46 - 54 mm

 80

54

54 - 64 mm

 80

64

64 - 69 mm

 80

69*

69 - 76 mm

 100



NOTE



1) Customized die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets;

4) Single phase and three phase can be made on request.



DELIVERY STANDARD



1) Hose Crimping Machine;

2) Foot Pedal;

3) 10 Die Sets;

4) Operation Manual;

5) Consumable Accessories.



OPTIONS



1) Quick Change Tool;

2) Quick Change Die Set Rack;

3) UC Control;

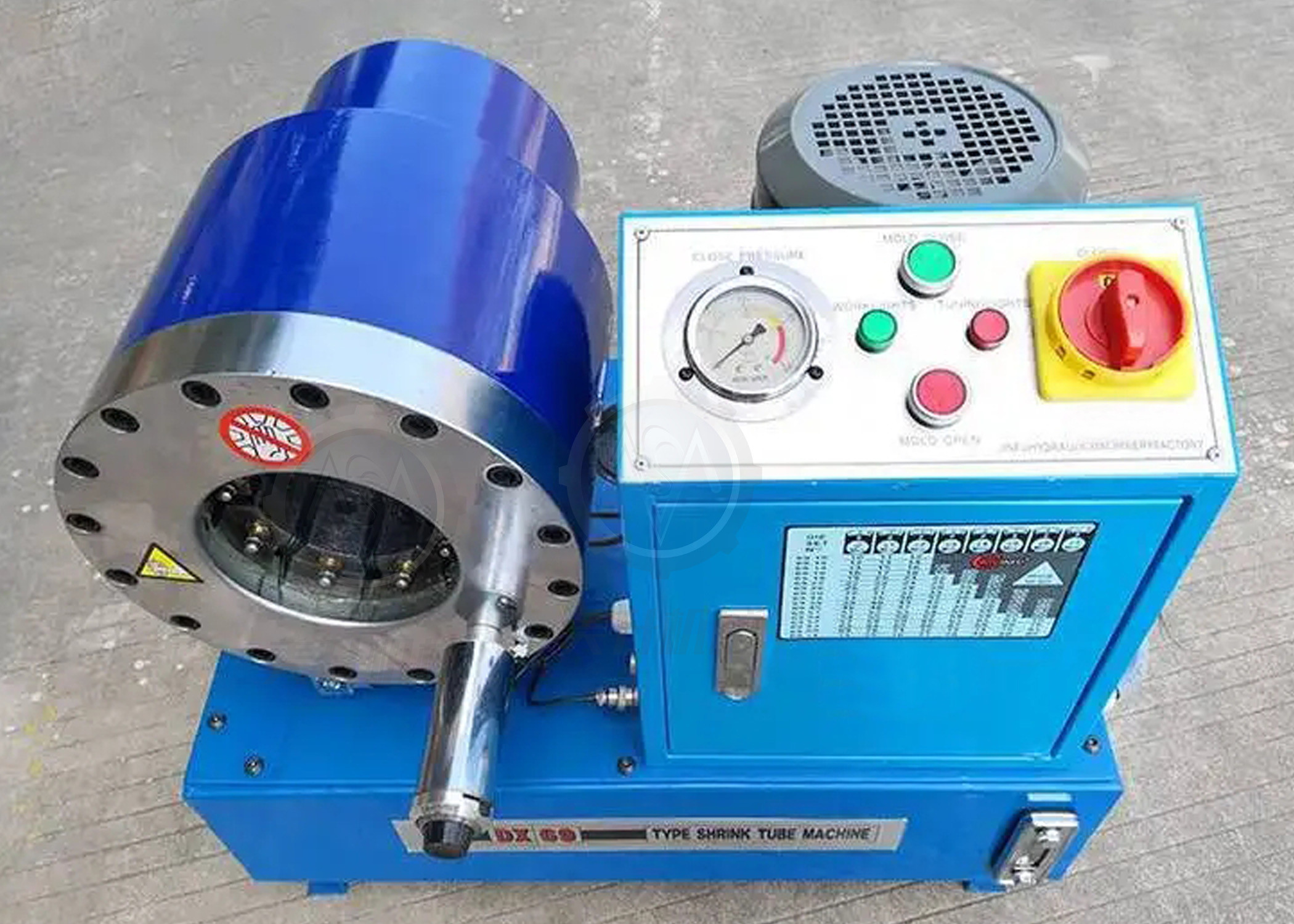

Automatic Hydraulic Hose Crimping Machine DX68 Hose Repairs Pipe Clamp Machine 1
