Specifications
Highlight:
Automotive Car Hose Crimping Machine
,EU Standard Hose Crimper
,Blue AC Hose Crimping Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
MS-SP52 Hydraulic Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
670*430*820mm
Weight:
260Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-SP52
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Automotive Car Hose Crimping Machine SP52 With Precise Swage Size Control

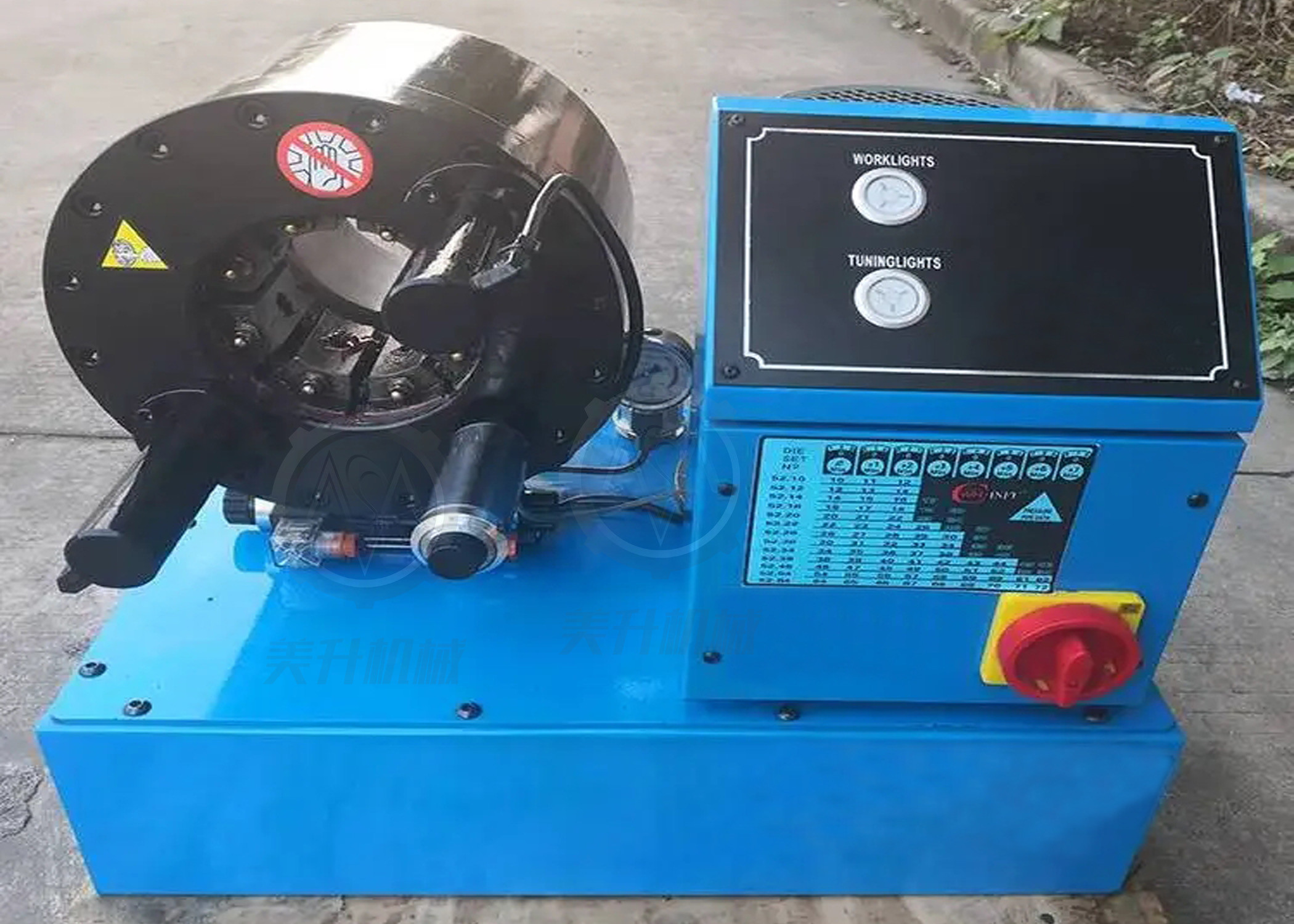

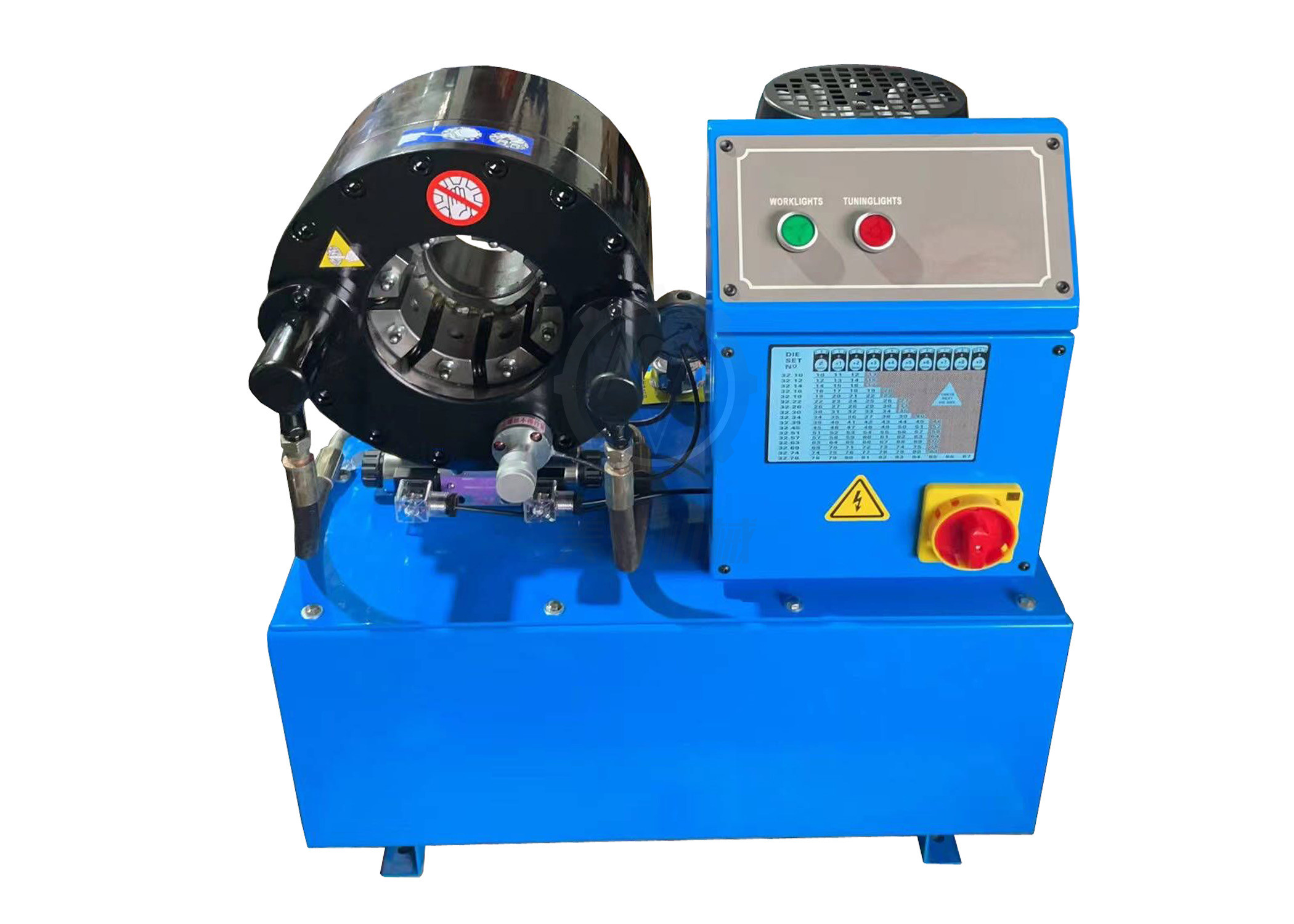

HYDRAULIC HOSE CRIMPING MACHINE MS - SP52
Product Description
MS-SP52 hose crimper supports crimp and swage hydraulic pressure hose assemblies, automotive air conditioner hose, and cable wires up to 2 inch (51mm). With cylinder on the outside design, the machine is more convenient for daily maintenance.
Main Features
- Advanced crimping technology meeting EU standards
- Wide range of applications
- High precision accuracy
- Quick working speed for efficient operation
Technical Specifications
| Model | MS - SP52 AC Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 52 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
52 Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 60 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 70 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes
- * indicates non-standard die sets
- Customized die sets are available upon request
- Special voltage options: 110V, 208V, 240V, 415V available
- Customized die sets are available upon request
- Special voltage options: 110V, 208V, 240V, 415V available
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- Quick Change Die Set Rack
