2'' High Pressure Hydraulic Hose Crimper
,High Pressure Hydraulic Hose Crimper 51CG
,High Pressure Hose Crimper 2 Inch

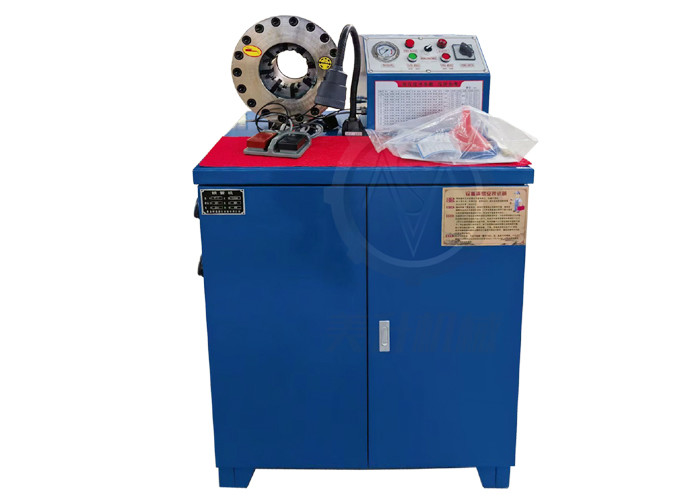

FLEXIBLE PIPE CRIMPING MACHINE MS-51CG
DESCRIPTION
MS-51CG high pressure hydraulic hose crimper machine is suitable for pressure hose with stainless steel wire braided 1/4 to 2 inch assembly making. Due to its wide crimping range, it has been one of the most favored machine in recent years. This hose crimping machine can be used in many industries, like hydraulic machinery repair, flexible hose fitting assmbly making, wire rope swaging for hanging, stainless steel or steel tube pressing for diameter reducing.
MAIN ADVANTAGES
1. Wide range of applications;
2. Ferrule crimping and making;
3. OEM service available;
4. Quick speed.
TECHNICAL DATA
|
Model |
MS-51CG Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |
51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool
- UC control;
-
