Specifications
Highlight:
650T Hydraulic Hose Crimping Machine
,Hydraulic Hose Swage Crimping Machine
,650T Hydraulic Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
E130-I Swaging Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130-I
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
High Pressure Hydraulic Hose Crimper P32 Crimping Machine

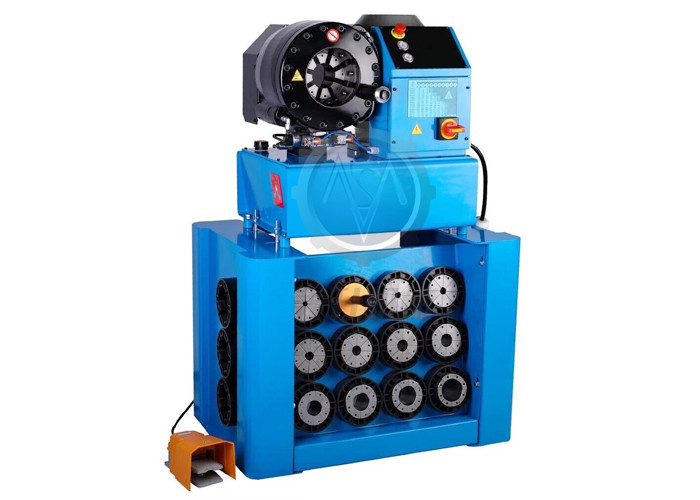

HYDRAULIC SWAGING MACHINE MS-E130-I
The MS-E130-I hydraulic hose crimper machine features a compact structure and bench top design, making it easy to mount in most repair workshops and hose assembly production lines. This machine comes with 13 standard die sets covering a crimping range from 14mm to 69mm, with the capability for expanded range using customized die sets.
This versatile hydraulic hose crimping machine is suitable for maximum 2-1/2 inch high pressure rubber oil hose assembly manufacturing, up to 3 inch industrial low pressure pipe pressing, metal stainless steel tube swaging, wire rope swaging, and cable crimping applications.
Key Advantages
- Rapid operation with powerful hydraulic pressing force
- High precision for hose fitting swaging applications
- Ergonomic design for easy operation and user comfort
- Emergency stop function for enhanced safety
- Quick die change tool to maximize crimping efficiency
Technical Specifications
| Model | MS-E130-I Hydraulic Crimper Machine |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 650 Tons |
| Hose Size | 1/4 - 2 1/2 inch |
| Maximum Opening | 31 mm |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control System | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3.75 KW |
| Dimensions (L*W*H) | 650 * 550 * 1360 mm |
| Weight | 310 KG |
P32 Hose Fitting Crimper Machine Die Sets
| Die Number | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 mm |
| 8* | 8 - 10 mm | 55 mm |
| 10* | 10 - 12 mm | 55 mm |
| 12* | 12 - 14 mm | 55 mm |
| 14 | 14 - 16 mm | 55 mm |
| 16 | 16 - 19 mm | 55 mm |
| 19 | 19 - 22 mm | 55 mm |
| 22 | 22 - 26 mm | 70 mm |
| 26 | 26 - 30 mm | 70 mm |
| 30 | 30 - 34 mm | 70 mm |
| 34 | 34 - 39 mm | 75 mm |
| 39 | 39 - 45 mm | 75 mm |
| 45 | 45 - 51 mm | 90 mm |
| 51 | 51 - 57 mm | 90 mm |
| 57 | 57 - 63 mm | 100 mm |
| 63 | 63 - 69 mm | 110 mm |
| 69 | 69 - 78 mm | 110 mm |
Important Notes
- * denotes non-standard die sets
- Customized die sets are available upon request
- Special voltage options including 110V, 208V, 240V, and 415V are available
