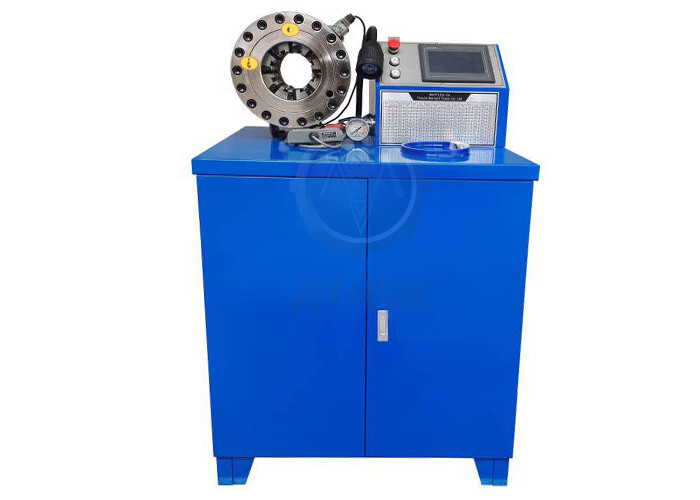

AUTOMATIC HYDRAULIC HOSE CRIMPER MACHINE MS-N51CG
DESCRIPTION
MS-N51CG hydraulic hose pressing machine is with advanced CNC micro computer control system. It is with high stability and high accuracy, suitable for swaging hose assembly from 1/4 inch to 2 inch 4 layers steel braided or spiraled. With customized die sets, crimping range can be bigger, like for 1/8'' hose or special air conditioner hose and brake lines hose.
MAIN ADVANTAGES
1. Flexibility for many hose sizes crimping and swaging work;
2. Big hose crimping force with large oil pump;
3. Famous PLC system to enable smart hose and cable crimping;
5. High accuracy.
TECHNICAL DATA
|
Model |
MS-N51CG Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |

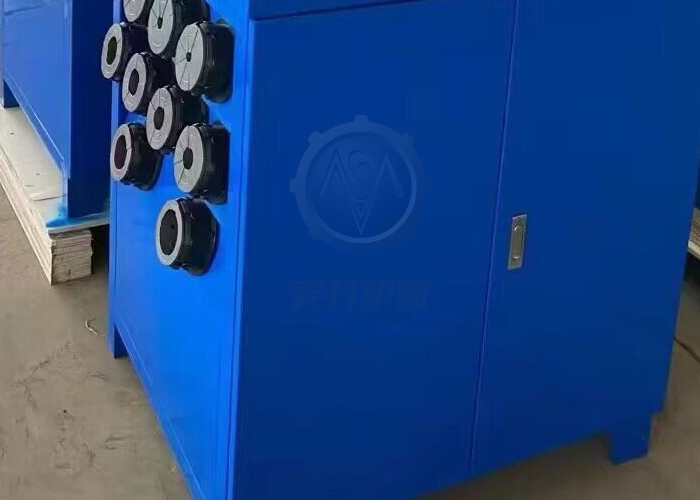

51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
