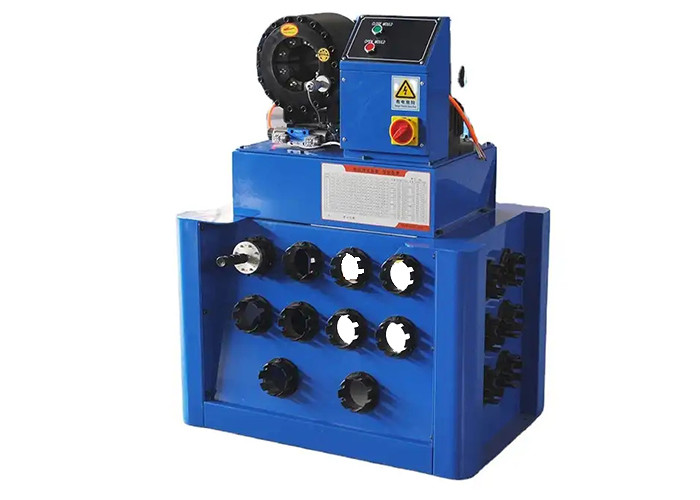

HYDRAULIC HOSE CABLE CRIMPING MACHINE MS-51KH
DESCRIPTION

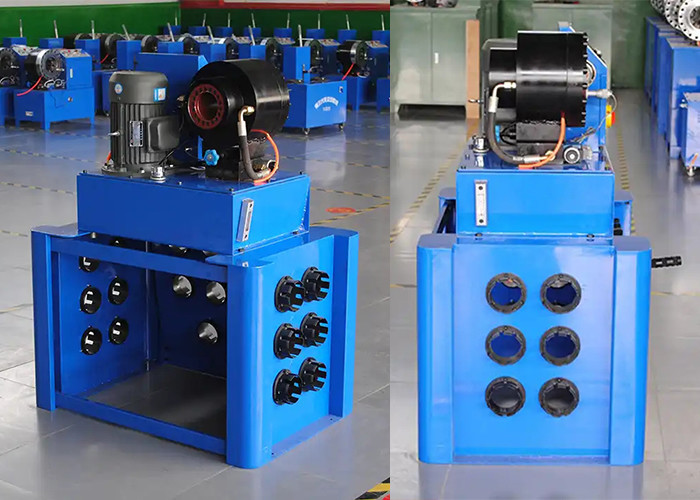

MS-51KH hose crimper is electric 220V/ 380V power drive model with crimping ability from 1/8 inch to 2 inch one to six steel wire braided hydraulic hose. It is equiped with quick change tool and die set rack to supply the operator a more convenient operating experience.
For all the hydraulic hose crimping machines, they can be controlled with machenical device (also we call it a MS control) and also by CNC didgital control (also we call it a UC control) which is more intelligent. Each have its advantage and disadvantage. For the MS control is that it can be easily for maintenance, but not so smart; for the UC control, it is more intelligent and smart, but it will cost much.
MAIN FEATURES
1. High efficiency with fast speed;
2. Ergonomic operate panel design;
3. Accurate diameter control dial;
4. Energy saving.
TECHNICAL DATA
|
Model |
MS-51KH Cable Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
1520 (mm) |
|
Weight |
310 (KG) |
51 CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
