Specifications
Highlight:
Safe Operation Hydraulic Hose Crimper
,87mm Hydraulic Hose Crimper
,14mm Hydraulic Pipe Pressing Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
E130-I Pipe Pressing Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130-I
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
T/T,Western Union,MoneyGram,Paypal
Standard Packaging:
One Plywood For One Set
Product Description
Portable Manual Hydraulic Pipe Pressing Machine Braided Brake Line Crimping Tool

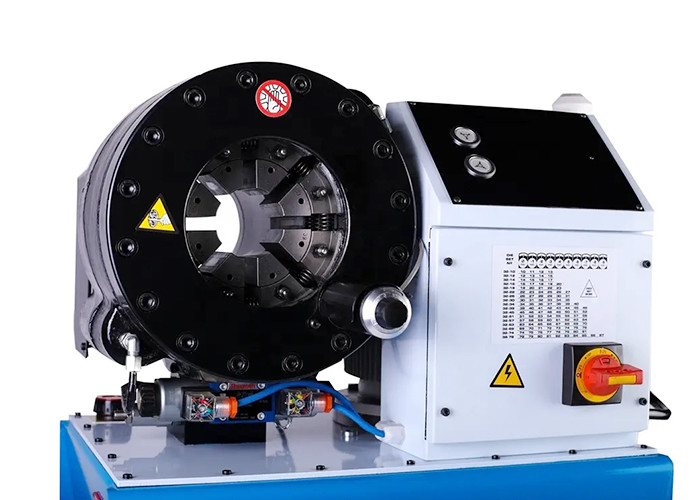

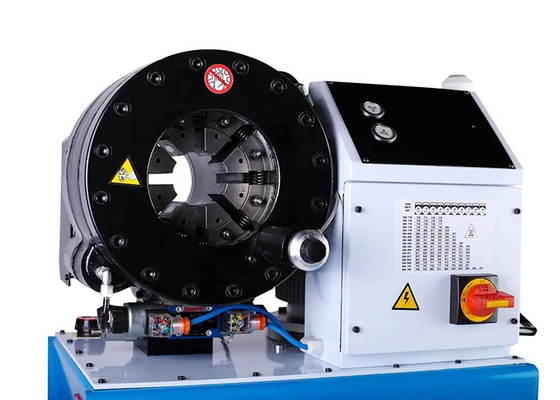

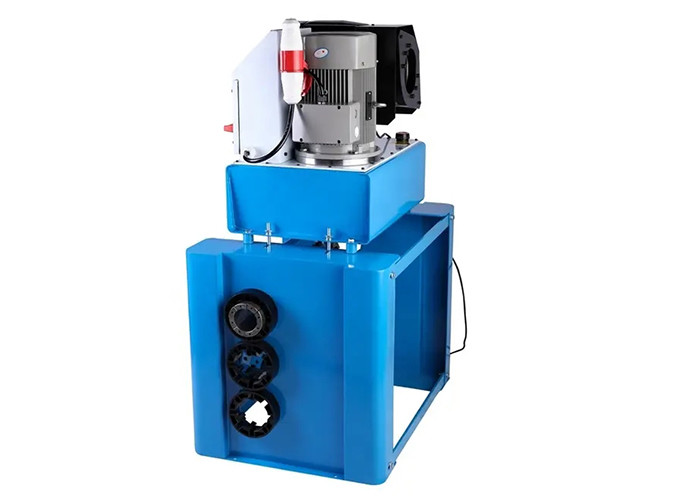

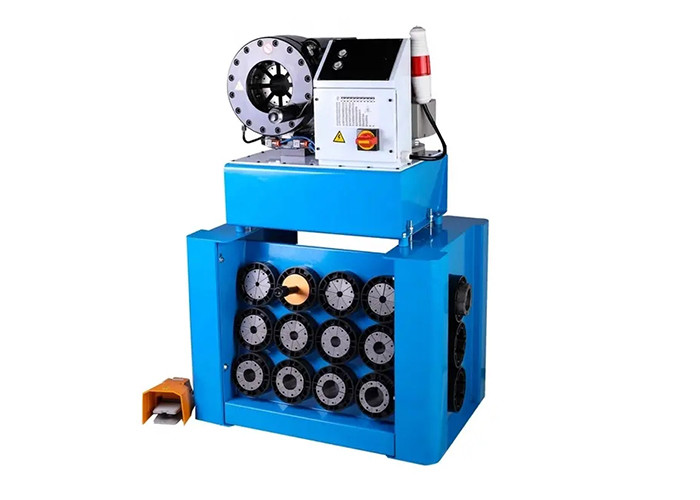

HYDRAULIC PIPE PRESSING MACHINE E130-I
DESCRIPTION
The MS-E130-I hose crimper machine is engineered for hydraulic high pressure hose fitting ferrule pressing up to 6 layers. It features a high-quality steel hydraulic cylinder and unique double conical master die structure, ensuring high precision crimping operations.
The E130-I hydraulic hose crimping machine supports pressing high pressure oil hose with fittings in hydraulic systems and industrial pipes with flange fittings. With substantial crimping force and rapid swaging speed, it operates efficiently for high-frequency applications.
ADVANTAGES
- Suitable for hose range 1/8" to 2" with 4 layers
- Die sets can be changed with quick change tool
- Ergonomic machine height for user convenience
- Foot pedal to improve operational efficiency
TECHNICAL DATA
| Model | MS-E130-I Pipe Pressing Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) |
| Motor Power | 3 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6 * | 6 ... 8mm | 55mm |
| 8 * | 8 ... 10mm | 55mm |
| 10 * | 10 ... 12mm | 55mm |
| 12 * | 12 ... 14mm | 55mm |
| 14 | 14 ... 16mm | 55mm |
| 16 | 16 ... 19mm | 55mm |
| 19 | 19 ... 22mm | 55mm |
| 22 | 22 ... 26mm | 70mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 34mm | 70mm |
| 34 | 34 ... 39mm | 75mm |
| 39 | 39 ... 45mm | 75mm |
| 45 | 45 ... 51mm | 90mm |
| 51 | 51 ... 57mm | 90mm |
| 57 | 57 ... 63mm | 100mm |
| 63 | 63 ... 69mm | 110mm |
| 69 | 69 ... 74mm | 110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL
• UC control system
• Position limit device
• Position limit device
