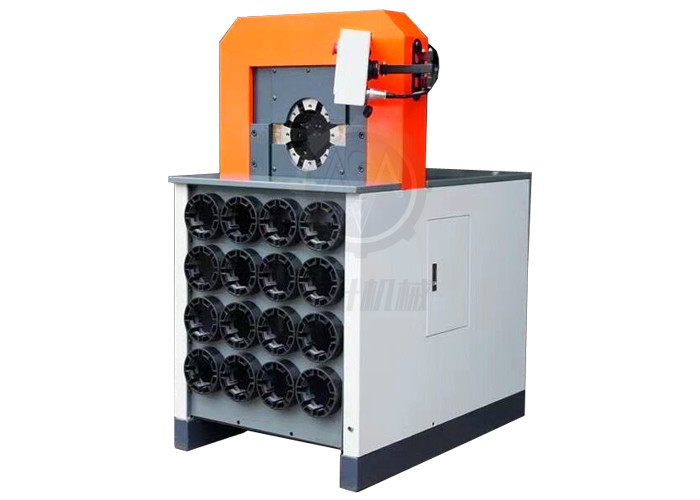

LARGE HYDRAULIC HOSE CRIMPING MACHINE 3 INCH P150
DESCRIPTION

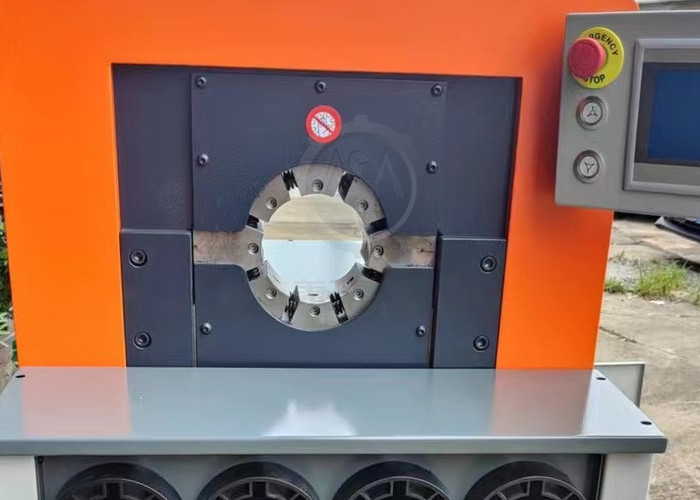

MS-P150 pipe pressing machine is designed for hydraulic hose from 1/4 inch to 3 inch crimping and fabricating. The crimping head is very thin compared to traditional crimping head, so the 90 degree fitting can be easily put in and take out for doing crimping.
The crimping dies of this hydraulic hose crimper have vertical movement, so it is very eay to positioning. The die sets can be changed and installed by the quick change tool from the die sets rack, improve the crimping production.
The pressing hose machine is with CNC control , more intelligent and smart.
ADVANTAGES
► High quality spare parts enable stable performance for hose crimping;
► Emergency stop device, enable safe hydraulic hose crimping work;
► Big and double use foot pedal, make the crimper more convenient to use;
► Low noise level, more comfortable.
TECHNICAL DATA
|
Model |
MS-P150 Hydraulic Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) 6 Spiral |
|
Max. Opening |
61 (mm) |
|
Die Sets |
14 |
|
Die Set Type |
P150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
380 (V) Three Phase |
|
Motor Power |
3.75 (KW) |
|
Length |
720 (mm) |
|
Width |
970 (mm) |
|
Height |
1600 (mm) |
|
Weight |
1020 (KG) |
P150 HYDRAULIC HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6 * |
6 ... 8mm |
55mm |
|
8 * |
8 ... 10mm |
55mm |
|
10 * |
10 ... 12mm |
55mm |
|
12 * |
12 ... 14mm |
55mm |
|
14 |
14 ... 16mm |
55mm |
|
16 |
16 ... 19mm |
55mm |
|
19 |
19 ... 22mm |
55mm |
|
22 |
22 ... 26mm |
70mm |
|
26 |
26 ... 30mm |
70mm |
|
30 |
30 ... 34mm |
70mm |
|
34 |
34 ... 39mm |
75mm |
|
39 |
39 ... 45mm |
75mm |
|
45 |
45 ... 51mm |
90mm |
|
51 |
51 ... 57mm |
90mm |
|
57 |
57 ... 63mm |
100mm |
|
63 |
63 ... 69mm |
110mm |
|
69 |
69 ... 74mm |
110mm |
| 74 | 74 ... 80mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
NOTE
• " * " for non standard mold
• Crimping range is based on standard mold
• Customized die sets with different shape and size are available
• Customized voltage 110V, 208V, 220V, 240V, 415V are availbale
APPLICATIONS OF P150 HOSE PRESSING MACHINE
P150 hose crimper machine can be used for hydraulic hose fitting assembly fabricating, industrial pipe and cable pressing, wires and ropes swaging, steel tube crimping, automotive components jointing and cable transfer work in the marine.
-
